Mazda Workshop Service and Repair Manuals > MX-6 LS V6-2.5L DOHC (1997) > Powertrain Management | Computers and Control Systems | Relays and Modules - Computers and Control Systems | Engine Control Module | Component Information | Locations | Page 2116

Engine Control Module|Locations|Page 2117 > < Engine Control Module|Locations|Page 2115

Page 5

background image

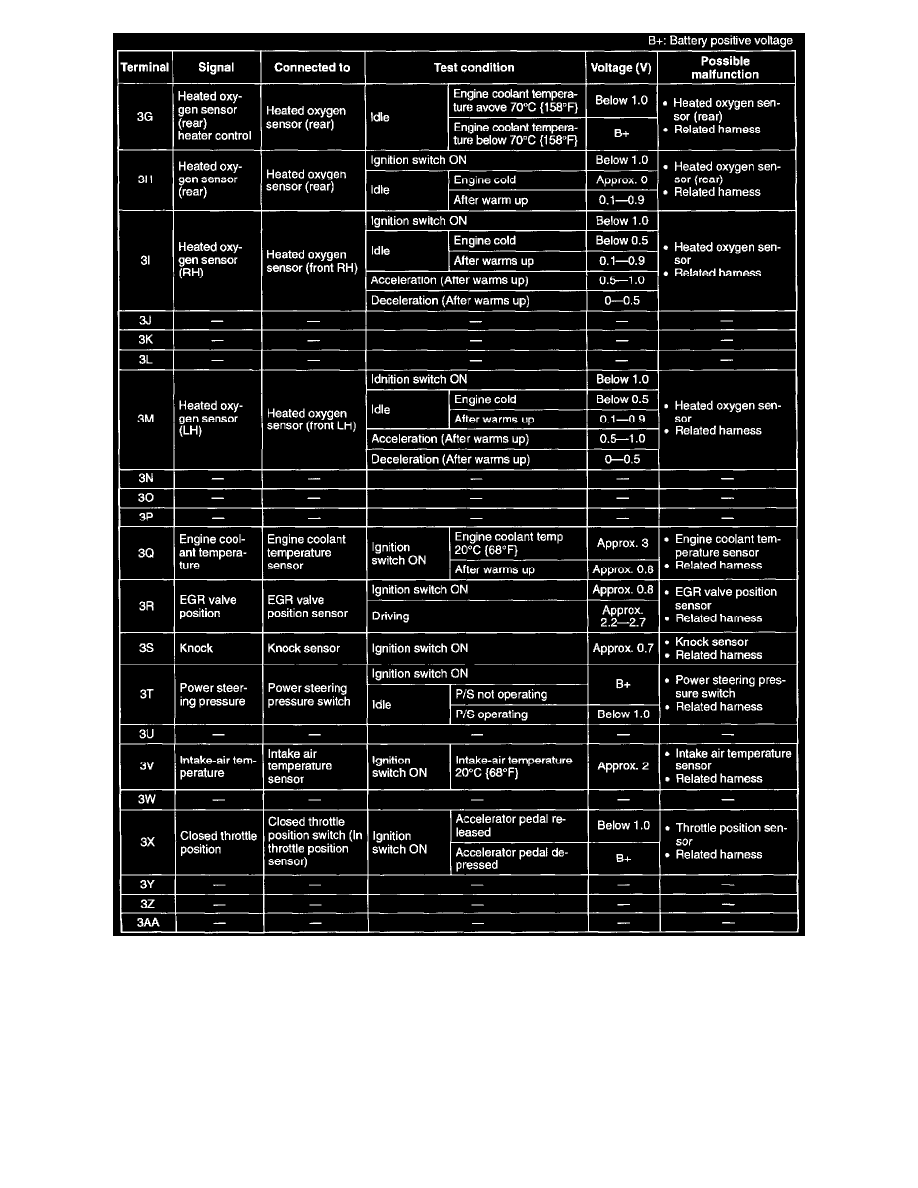

PCM Terminal Voltage Reference (5 Of 7)

Powertrain Management
Computers and Control Systems
Relays and Modules - Computers and Control Systems / Engine Control Module / Locations
Page 2116

Engine Control Module|Locations|Page 2117 > < Engine Control Module|Locations|Page 2115
