MX-6 LS V6-2.5L DOHC (1997)
3. Loosen the attaching screws.
4. Turn the ignition switch to ON.

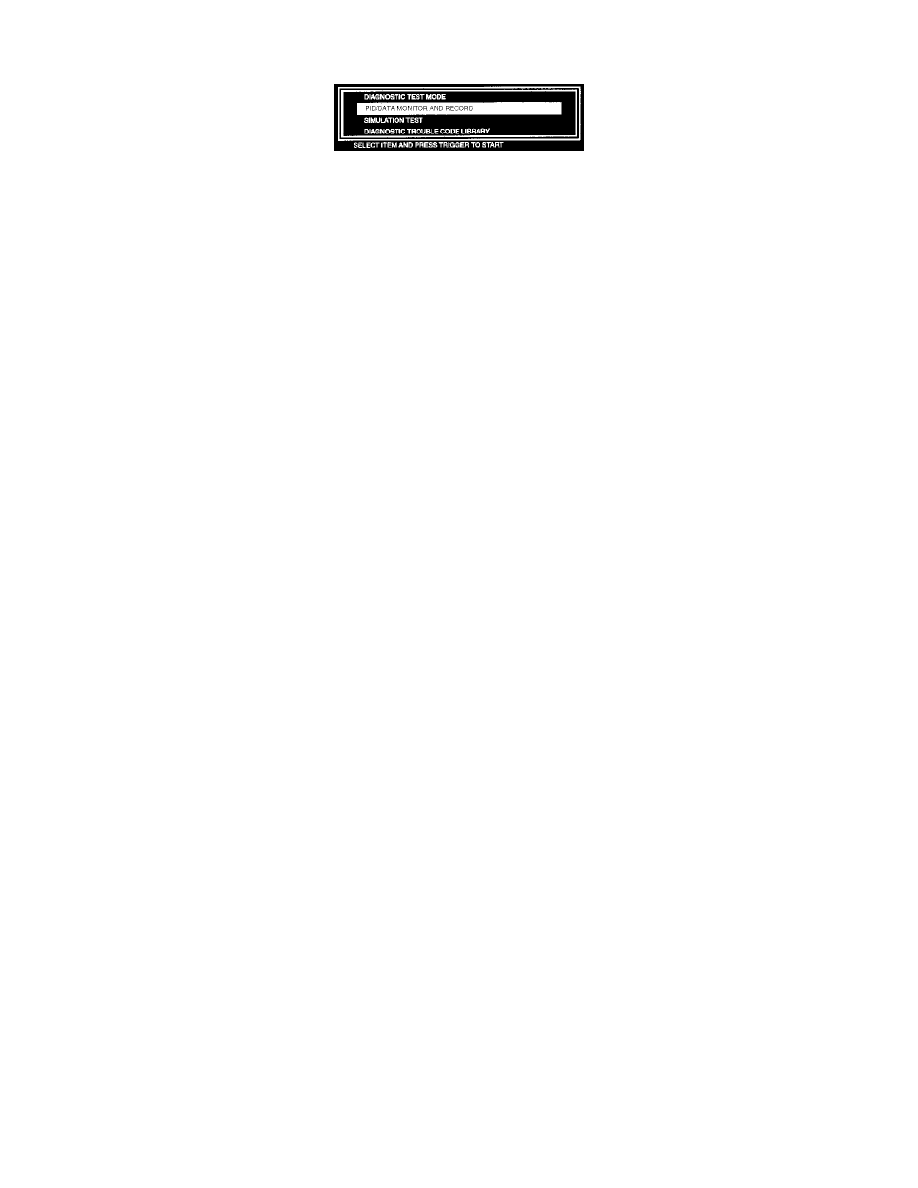

NGS Display
5. Select the PID/DATA MONITOR AND RECORD function of the NGS.
6. Select "TP V" on the NGS display. NGS measures and shows the voltage.
Specification
Closed throttle position: 0.1-1.1 V
Wide open throttle: 2.8-4.5 V
(Verify that the voltage increase is directly proportioned to the throttle valve opening angle.)
7. Tighten the attaching screws.
Tightening torque: 1.6-2.3 Nm (14-20 in.lbs.)
8. If not adjusted, replace the throttle position sensor.
