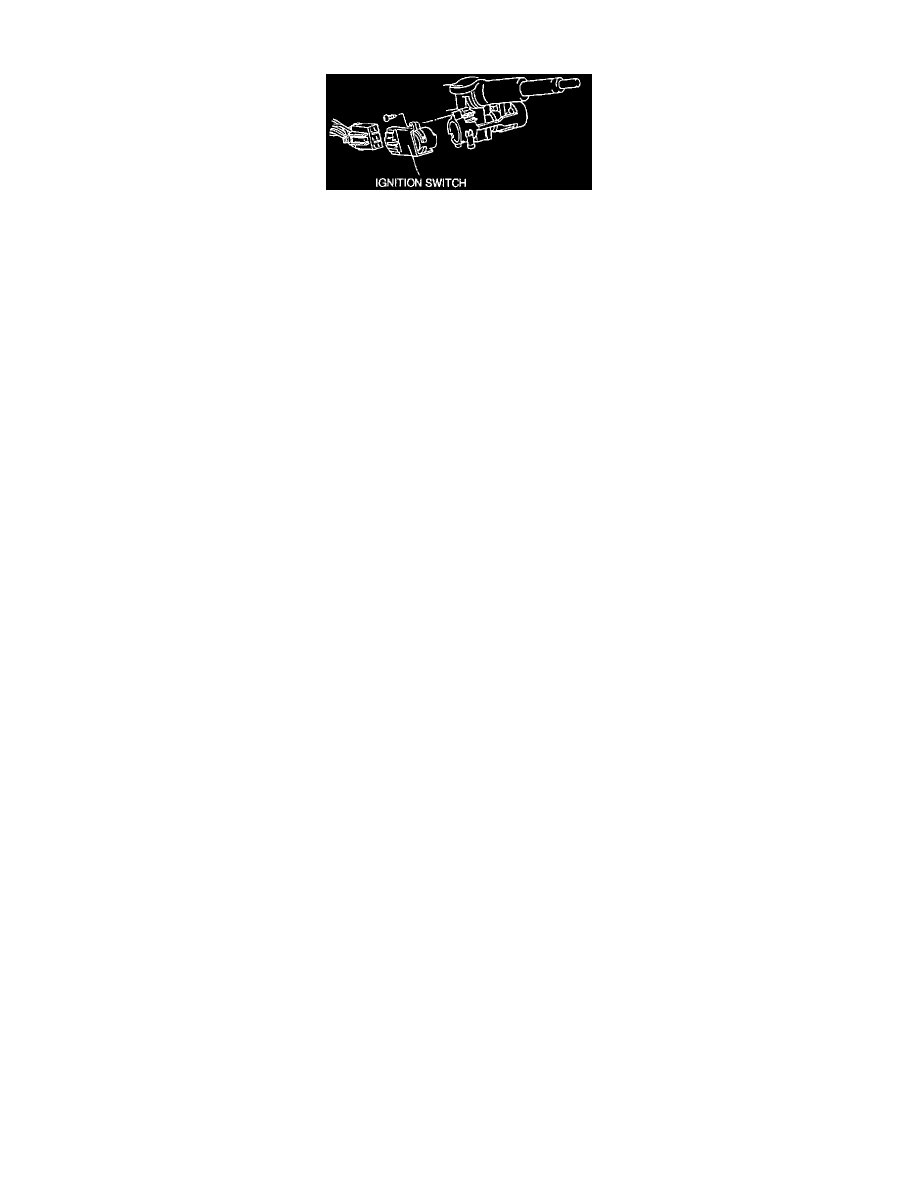

Ignition Switch: Service and Repair

Removal/Installation
1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Disconnect the ignition switch connector.
4. Remove the screw and the ignition switch.
5. Install in the reverse order of removal.
