MX-6 LS V6-2.5L DOHC (1997)
Power Steering Pump: Service and Repair
Disassembly and Assembly
DISASSEMBLY
1. The following procedure is for replacement of the O-rings, the shaft, and the pump body (front) only. Replace the oil pump assembly if other
repairs are necessary.

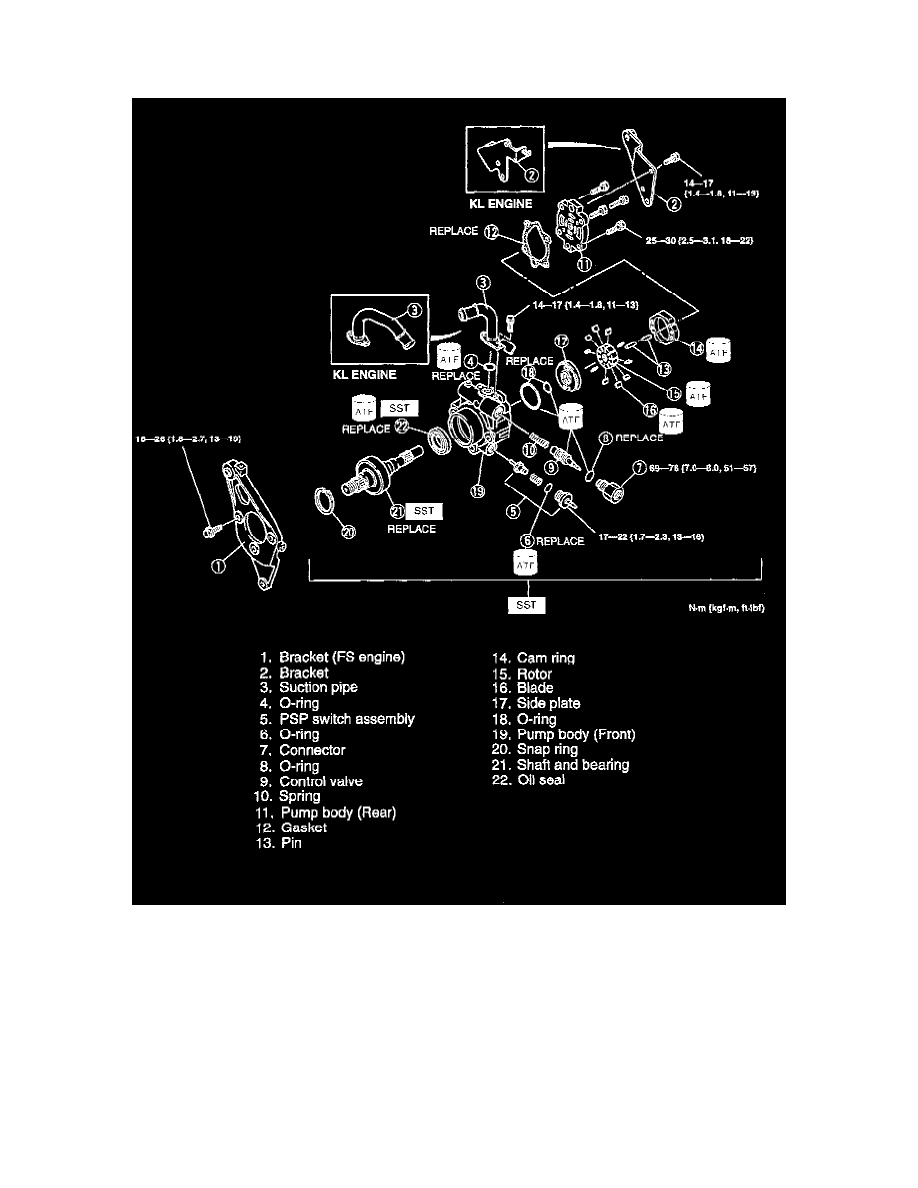

2. Disassemble in the order shown in the illustration, referring to the following steps.
