MX-6 LS V6-2.5L DOHC (1997)
Shift Selector: Testing and Inspection

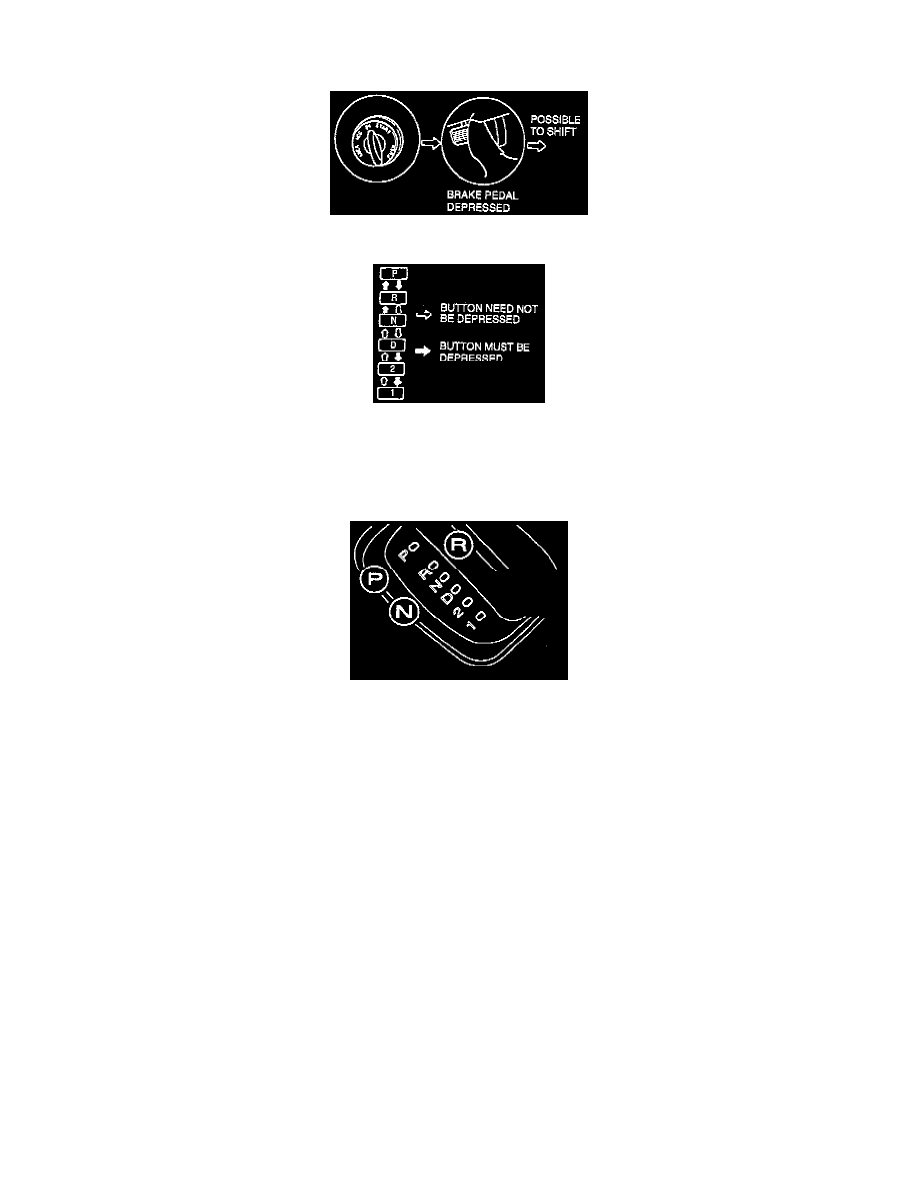

1. Turn the ignition switch to ON (engine off).
2. With the brake pedal depressed, verify that there is a "click" at each range when shifted in the pattern shown.
3. Verify that the selector lever can only be shifted as shown.
4. Verify that there is a "click" at each range when shifted from P position -> 1 range.
5. Verify that the positions of the selector lever and the indicator are aligned.
6. If not as specified, adjust the indicator panel.
7. If not as specified, adjust the transaxle range switch.
8. Verify that the vehicle operates in selected range.
