MX-6 LS V6-2.5L DOHC (1997)
Constant Velocity Joint: Service and Repair
Automatic Transaxle
DISASSEMBLY

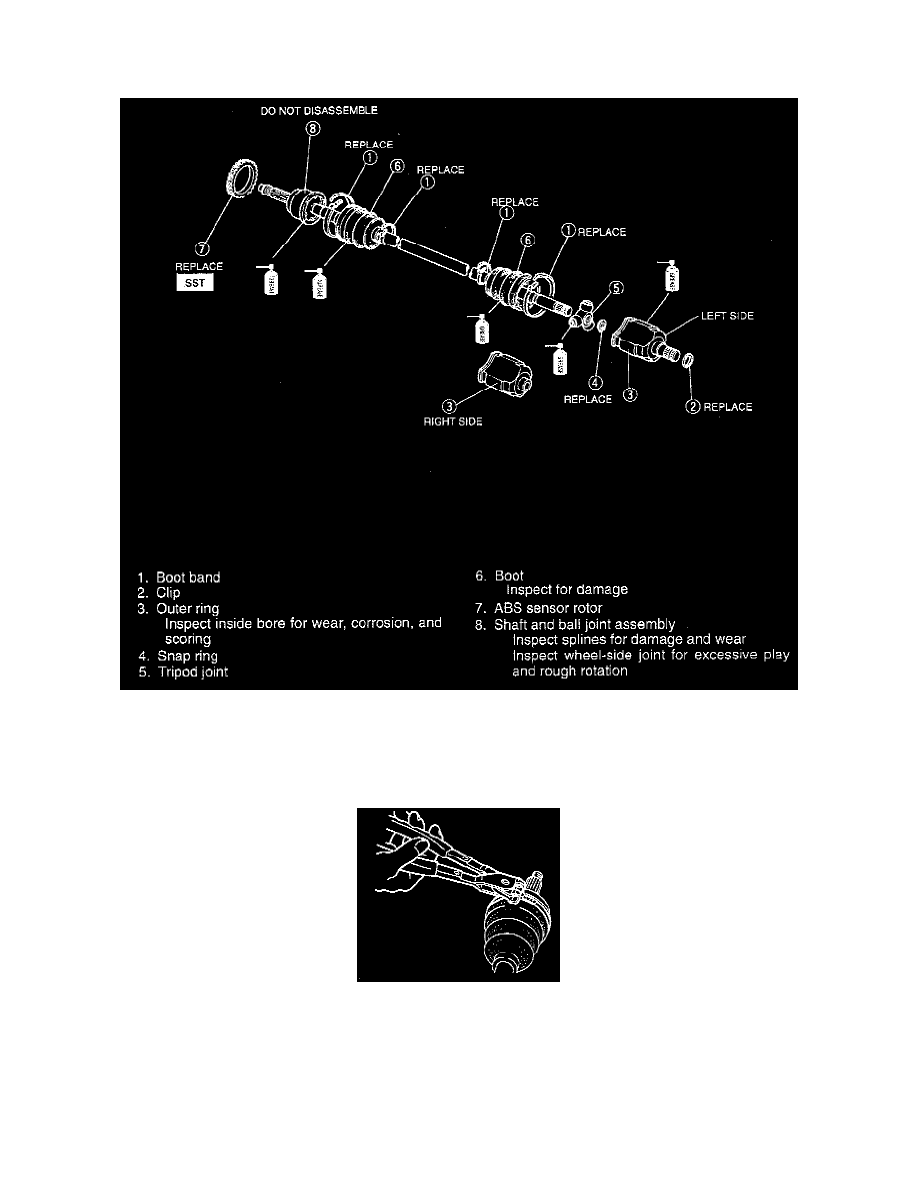

Disassemble in the order shown in the illustration, referring to the following notes:
Boot band
NOTE: The boot band does not need to be removed unless you are replacing it.
Outer ring
1. Remove the boot clamp with end clamp pliers as shown and discard the clamp.
