Protege L4-2.0L DOHC (2003)
Drive Belt: Adjustments

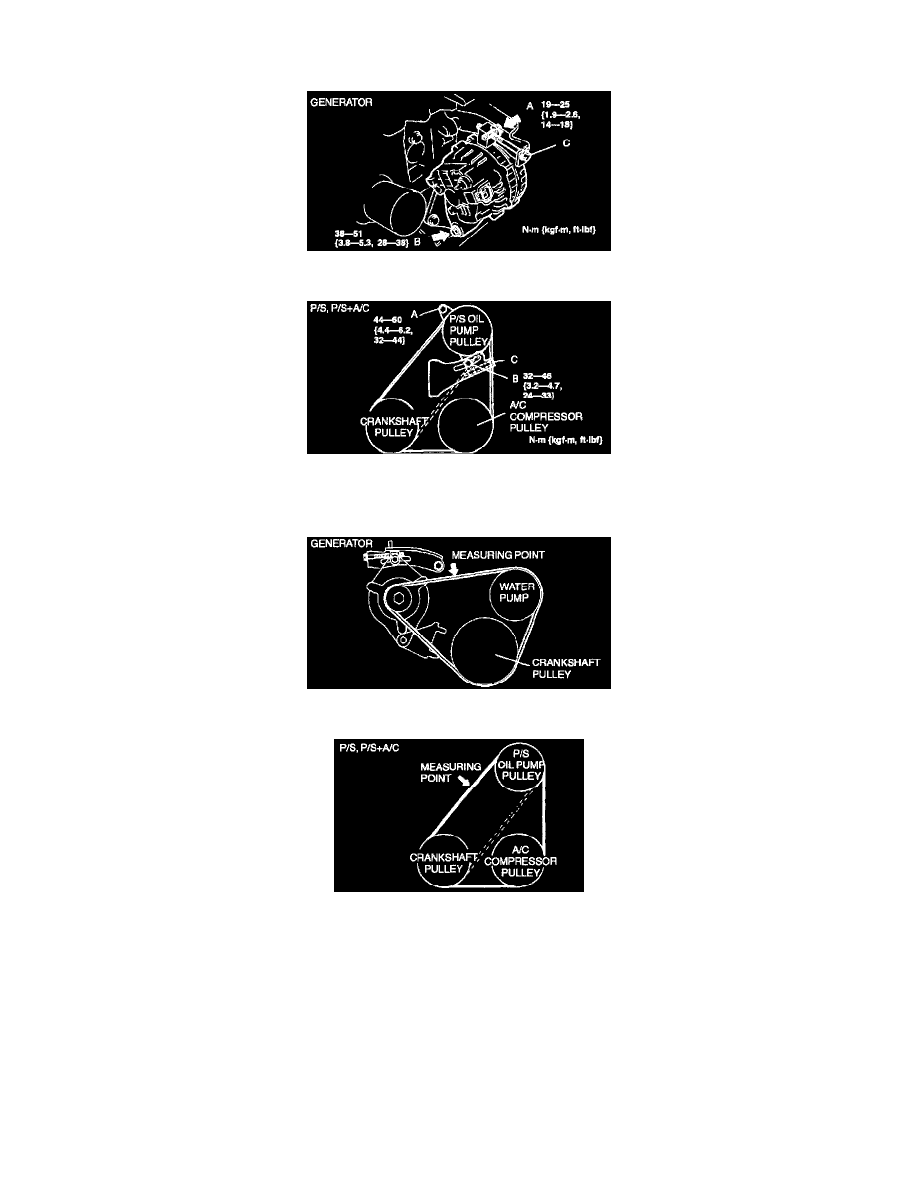

DRIVE BELT ADJUSTMENT [FS]
Generator
P/S, P/S + A/C
1. Loosen mounting bolt A and B.
Generator
P/S, P/S + A/C
2. Adjust the belt deflection or tension by turning the adjusting bolt C.
Caution:
-
If the belt is replaced with a new one or the belt has been on a running engine for less than 5 minutes, adjust deflection or tension to "New"
specification.
-
If the belt has been on a running engine for more than 5 minutes, adjust deflection or tension to "Used" specification.
