Protege DX L4-1.6L DOHC (2000)

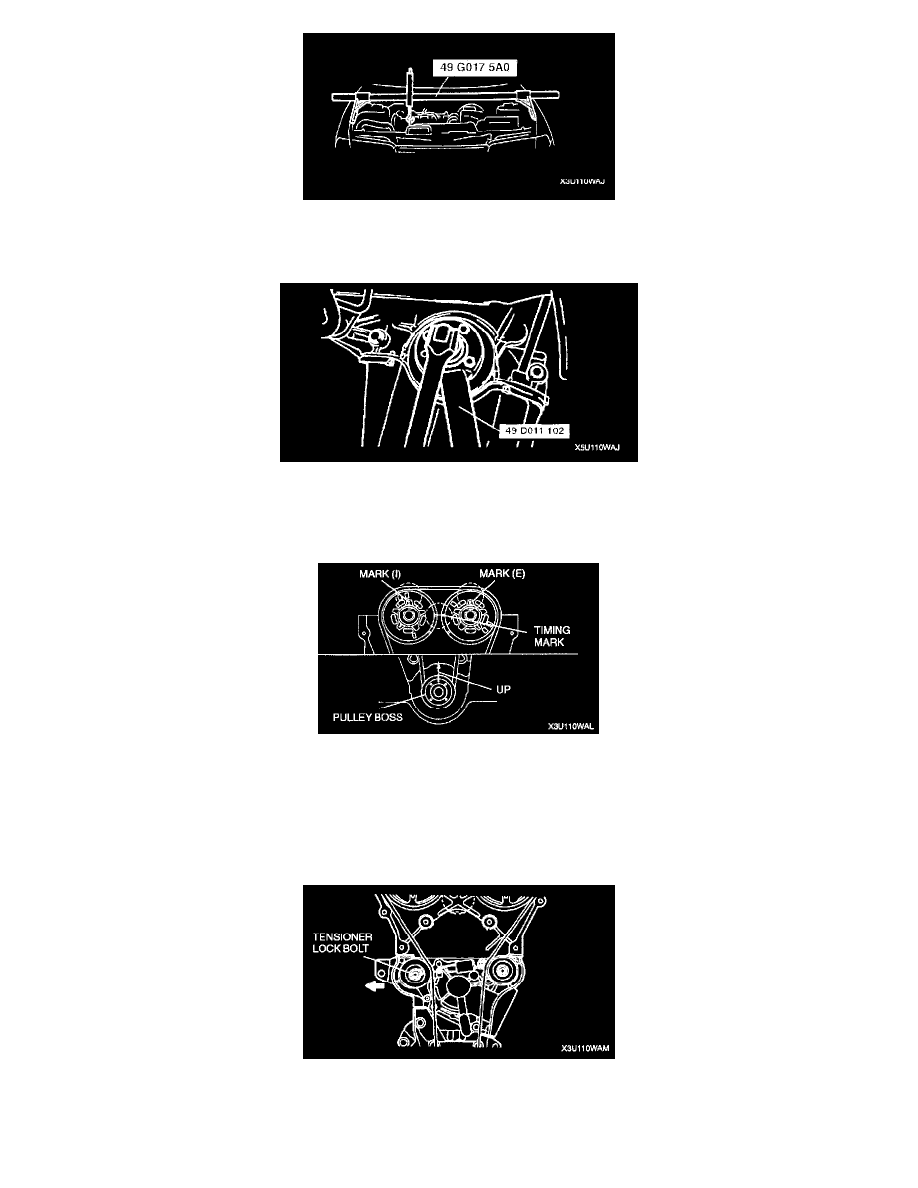

1. Suspend the engine using the SST
Pulley Lock Bolt Removal/Installation Note
1. Remove the crankshaft using the SST
Timing Belt Removal Note
1. Install the pulley boss and pulley lock bolt.
2. Turn the crankshaft clockwise and align the timing marks.
Note:
-
Face the marks (I) and (E) of the camshaft pulley straight up, then align the timing marks with the horizontal surface on the cylinder head.
-
The pulley boss position pin on the crankshaft should be facing straight up.
3. Loosen the tensioner lock bolt.
4. Push the tensioner in the direction of the arrow and hand-tighten the lock bolt.
Caution: Forcefully twisting is the timing belt turning it inside out, or allowing oil or grease on It will damage the belt and shorten its life.
