Drive Belt: Adjustments

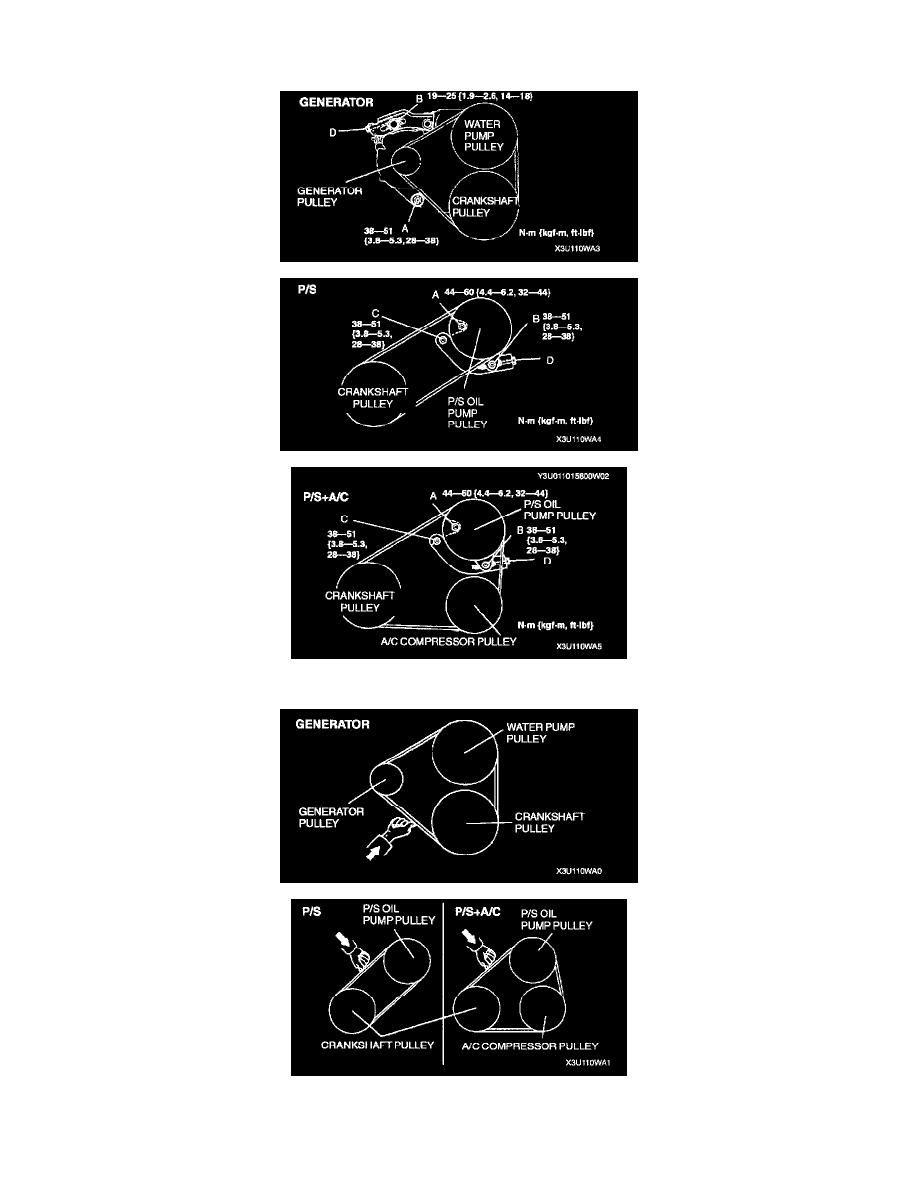

DRIVE BELT ADJUSTMENT [ZM]

1. Loosen mounting bolt A, B, and C.

2. Adjust the belt deflection or tension by turning the adjusting bolt D.

Caution:
