RX7 2RTR- 1308cc 1.3L FI (1987)
Alignment: Technical Service Bulletins
Alignment - Toe Control Hub, Bushing
Category 13
Applicable Model/s 1986-1987 RX-7
Subject WHEEL ALIGNMENT TOE CONTROL HUB
Bulletin No. 007/86
Issued
8/28/86
Revised

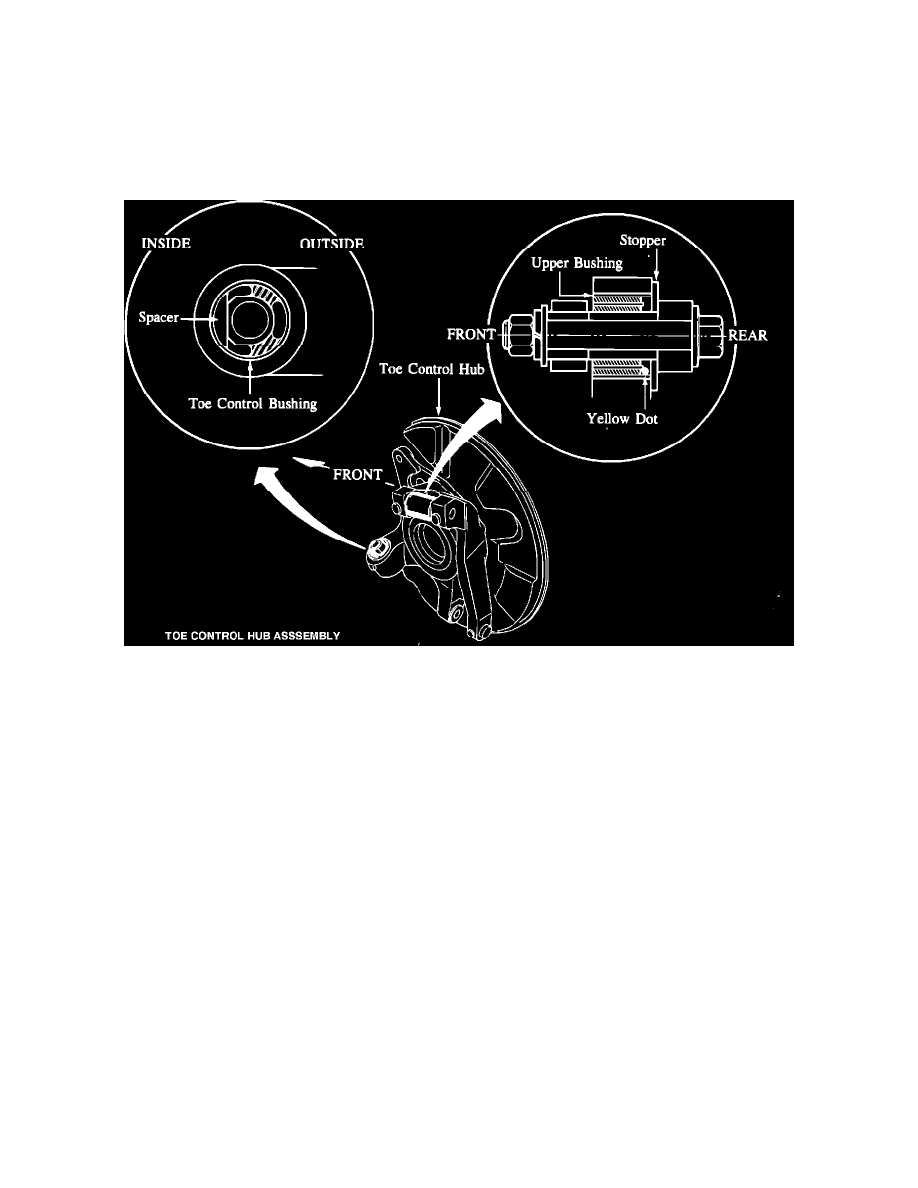

Toe Control Hub Assembly
DESCRIPTION
The toe control bushing and spacer are no longer available separately as service parts. If the toe control bushing needs to be replaced, the toe control
hub, which includes both, must be replaced.
Mazda has determined that selecting the correct spacer and installing the toe control bushing is too complex for service repairs and, consequently, has
decided not to make these parts available separately.
CAUTION:
When reinstalling the toe control hub, the stopper must be installed to the rear of the upper bushing (facing the yellow dot) as shown. If the stopper is
incorrectly installed, improper toe control will result.
PARTS INFORMATION
PART NUMBER
NEW
OLD
DESCRIPTION
INTERCHANGEABILITY
FB01 49 130
FB01 26 131C
Toe Control Hub (R)
NEW --> OLD
FB01 49 140
FB01 26 141C
Toe Control Hub (L)
NEW --> OLD
