RX7 2RTR- 1308cc 1.3L Turbo FI (1989)
Air Door Actuator / Motor: Testing and Inspection
REC/FRESH Select Actuator Inspection
1. Remove the blower unit.
2. Disconnect the REC/FRESH select actuator connector.

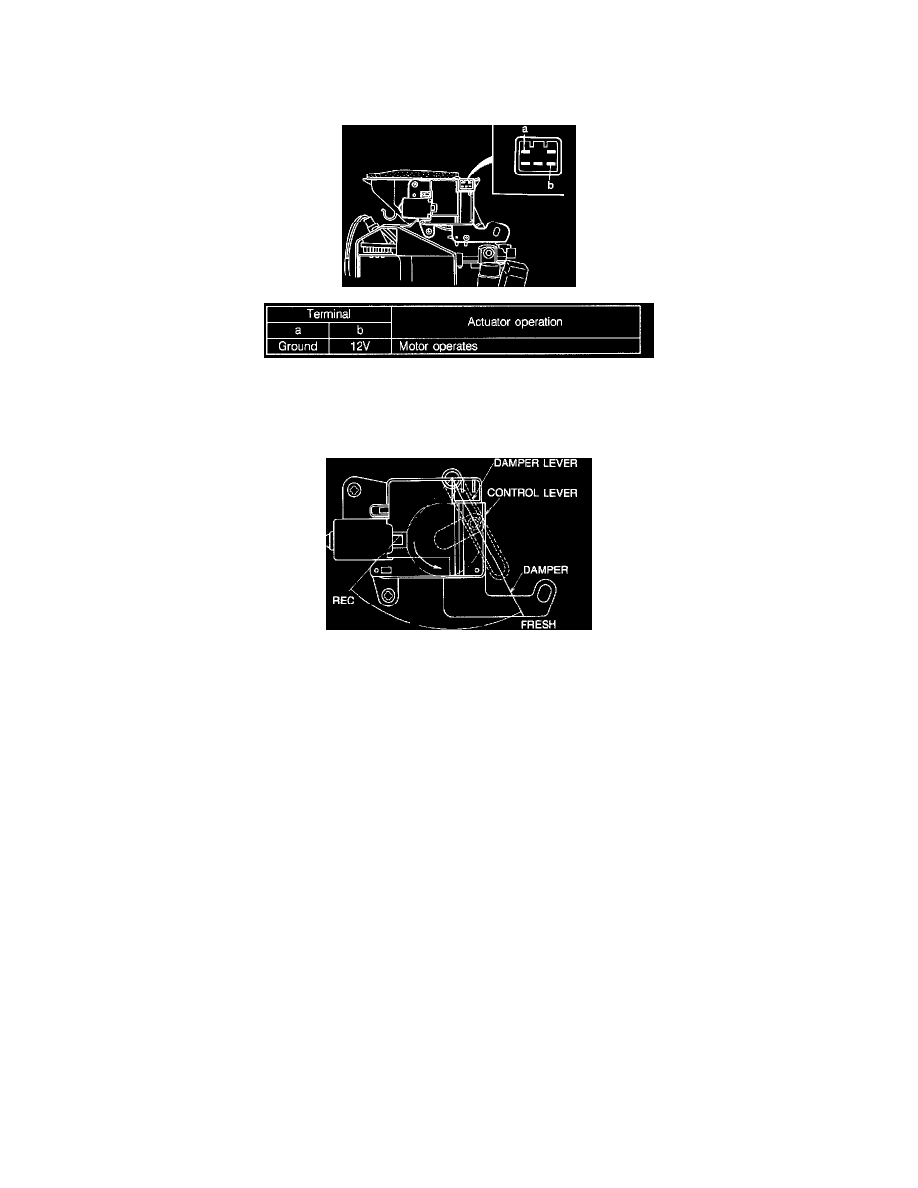

3. Check the actuator operation as shown.
4. If not as specified, replace the actuator.
Link mechanism
-
The correct stopping position of the actuator lever is as shown.
