Mazda Workshop Service and Repair Manuals > RX8 2RTR-1.3L (2006) > Relays and Modules | Relays and Modules - Accessories and Optional Equipment | Keyless Entry Module | Component Information | Testing and Inspection | Component Tests and General Diagnostics | Page 12

Component Tests and General Diagnostics|Page 13 > < Component Tests and General Diagnostics|Page 11

Page 5

background image

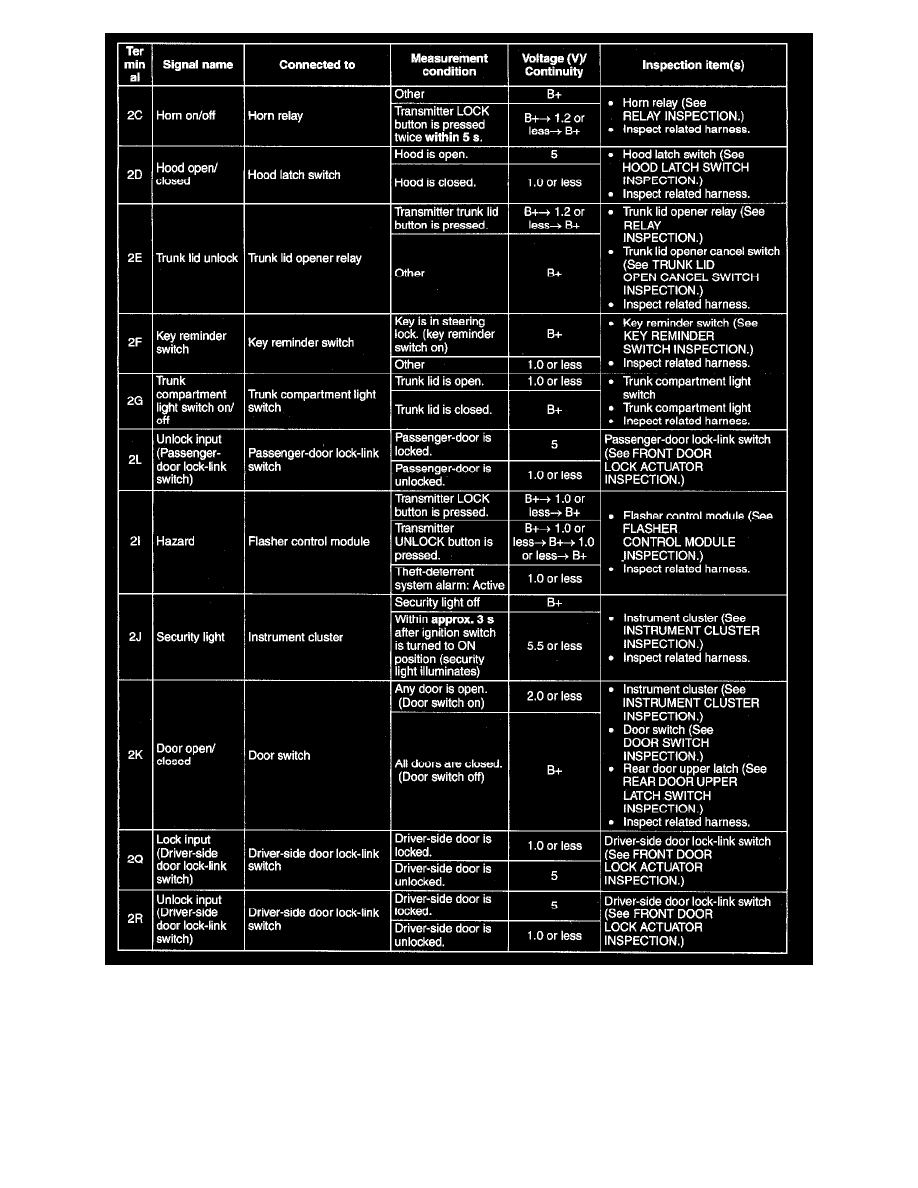

Terminal 2C-2R

Relays and Modules
Relays and Modules - Accessories and Optional Equipment / Keyless Entry Module / Testing and Inspection / Component Tests and General Diagnostics
Page 12

Component Tests and General Diagnostics|Page 13 > < Component Tests and General Diagnostics|Page 11
