RX8 2RTR-1.3L (2006)
Headlamp Washer Motor: Service and Repair
Headlight Cleaner Actuator
HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the front side marker light.
3. Remove the front bumper.
4. Remove the headlight cleaner nozzle.

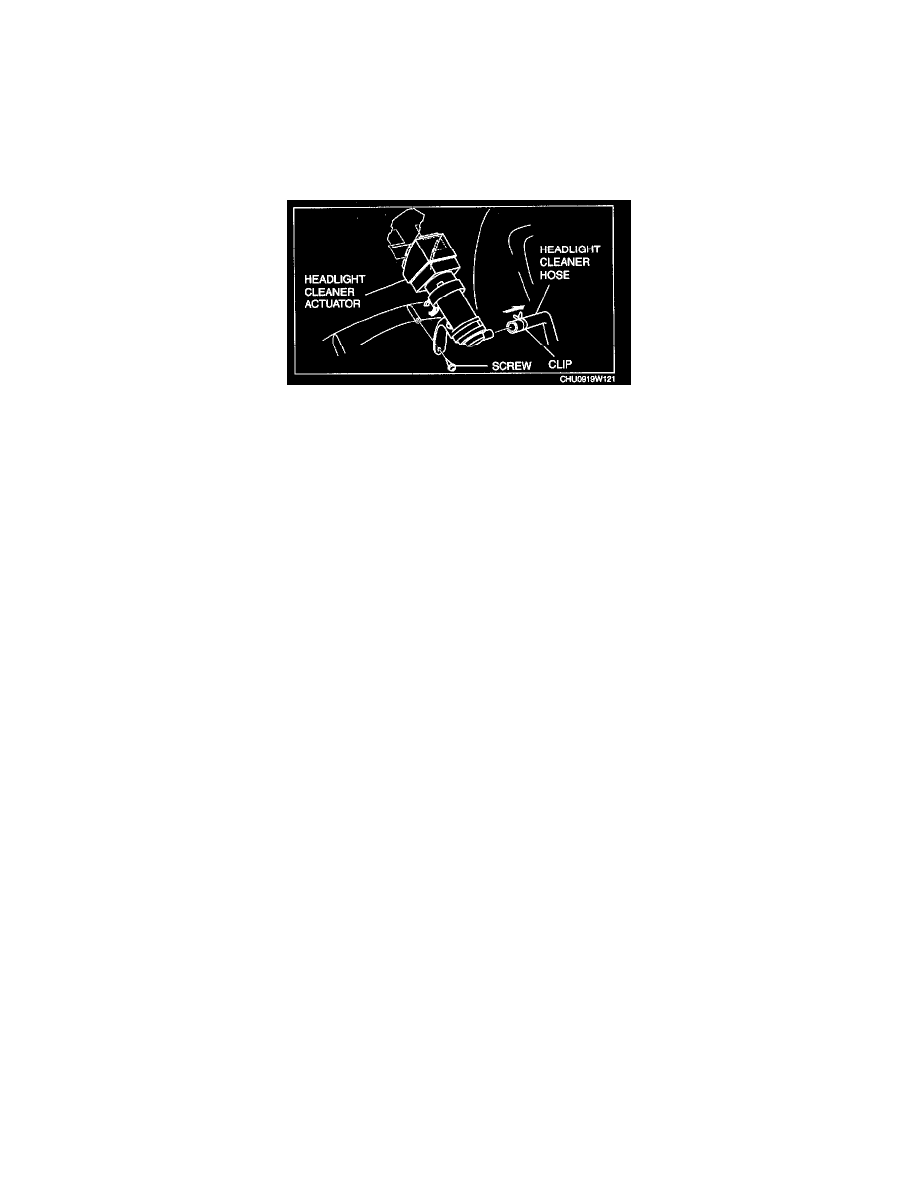

5. Squeeze the clip tabs and slide the clip in the direction of the arrow.
6. Disconnect headlight cleaner hose from the headlight cleaner actuator.
7. Remove the screw, then remove the headlight cleaner actuator.
8. Install in the reverse order of removal.
