Tribute 2WD L4-2.3L (2005)

Page 1
background image

Grille: Service and Repair

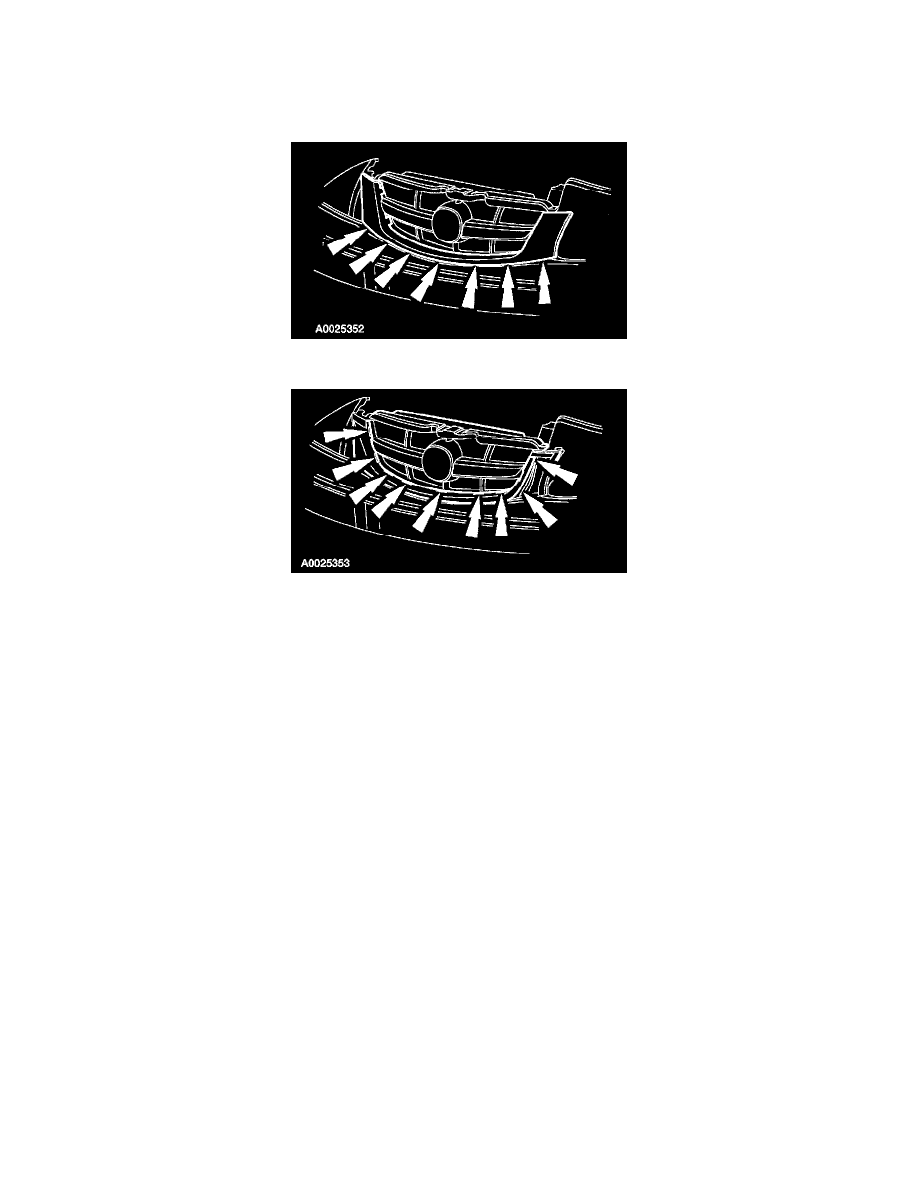

RADIATOR GRILLE

Removal and Installation

1. Remove the front bumper cover.

2. Release the clips and remove the radiator grille opening moulding.

3. Release the clips and remove the radiator grille.
4. To install, reverse the removal procedure.
