Tribute 2WD L4-2.5L (2009)

  • Relays and Modules
  • Relays and Modules - Restraint Systems
  • Air Bag Control Module
  • Component Information
  • Locations

Page 1
background image

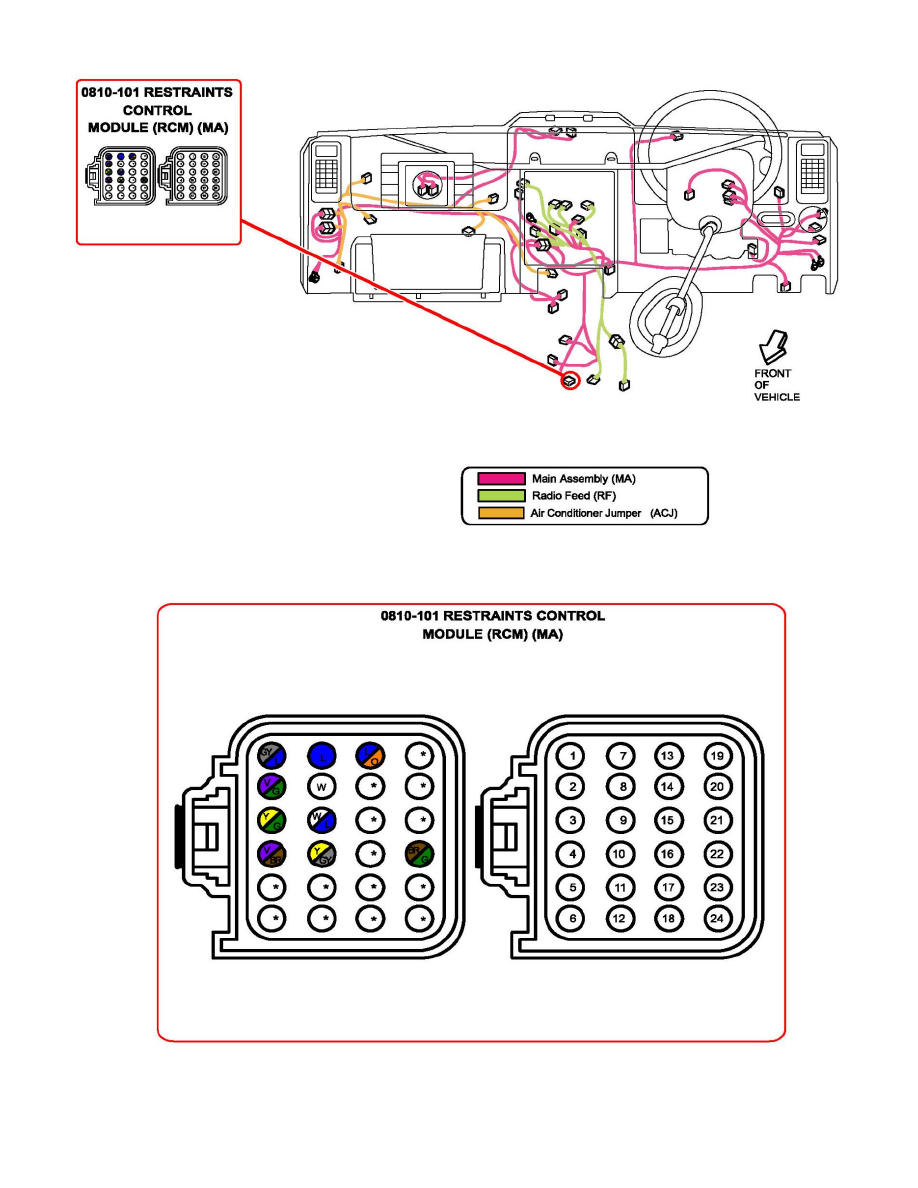

Air Bag Control Module: Locations

Restraints Control Module (RCM)

  • Relays and Modules
  • Relays and Modules - Restraint Systems
  • Air Bag Control Module
  • Component Information
  • Locations
