Timing Component Alignment Marks: Locations

Make

Mercedes Benz

Model

300 Series 300SE (126.024)

Engine

L6-3.0L (103.981)

Year

1989

Section

Timing Component Alignment Marks › Locations

MaintenanceLocations

Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

Setting TDC

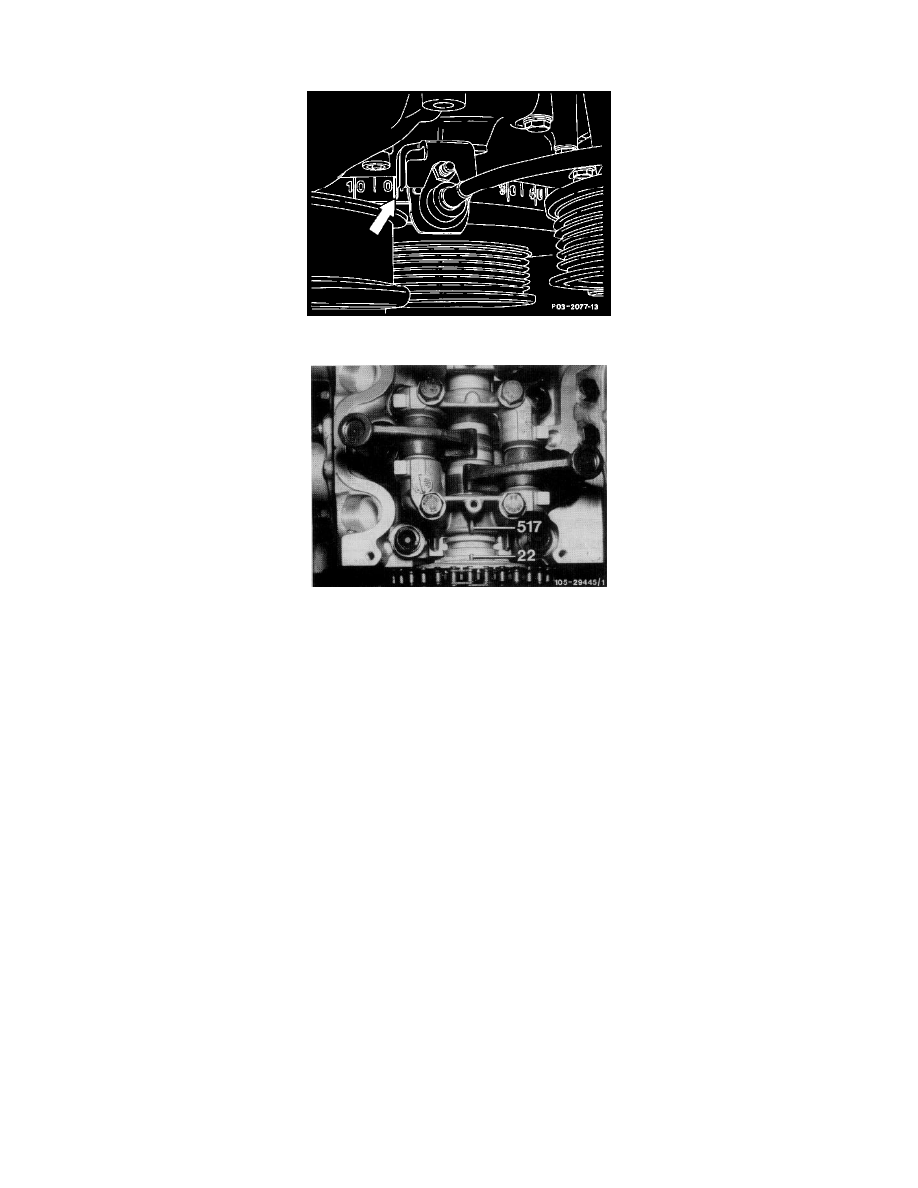

Set engine to TDC and check camshaft adjustment marks.

For further information refer to Timing Chain : Service and Repair
See: Engine, Cooling and Exhaust/Engine/Timing Components/Timing Chain/Service and Repair

and Camshaft, Engine : Adjustments
See: Engine, Cooling and Exhaust/Engine/Camshaft, Lifters and Push Rods/Camshaft/Adjustments
