Fuse: Locations

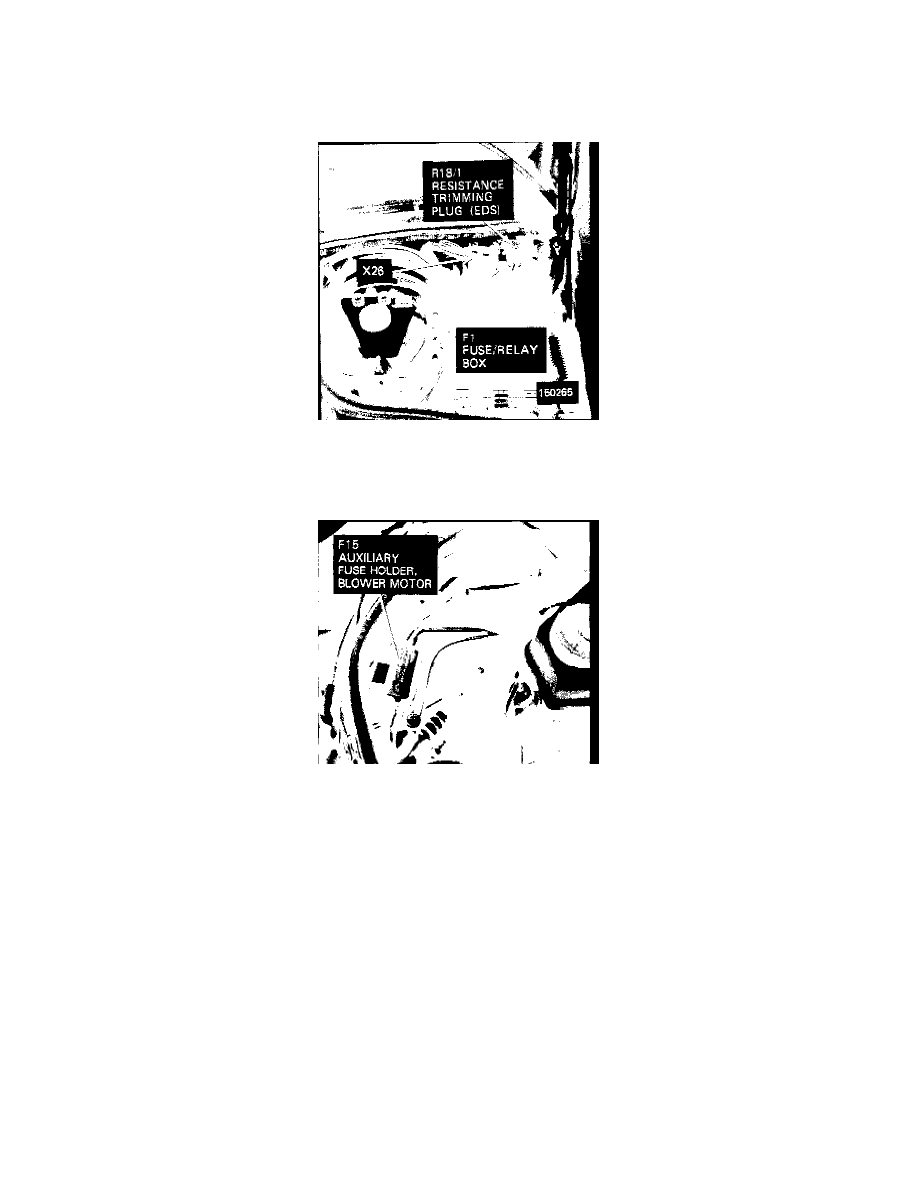

Fuse and Relay Block Identification and Location



Left Rear Corner of Engine Compartment

The fuse/relay box is located in the left rear corner of the engine compartment.


F15 - Aux. Fuse Holder for Blower Motor (Near Brake Fluid Reservoir)

The auxiliary fuse holder is located in the engine compartment near brake fluid reservoir.
