Fuse: Locations

Fuse and Relay Block Identification and Location

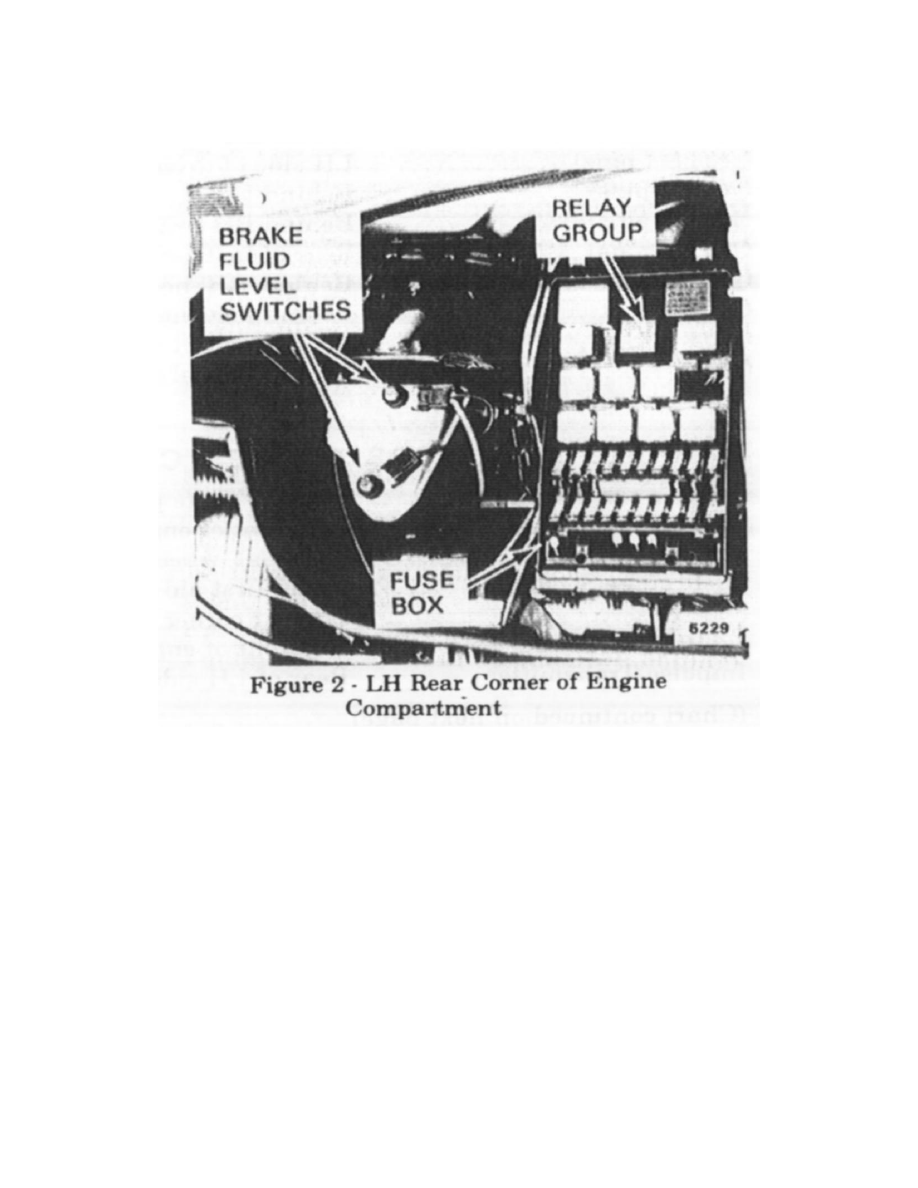

The fuse/relay box is located in the left rear corner of the engine compartment.
