Timing Component Alignment Marks: Locations

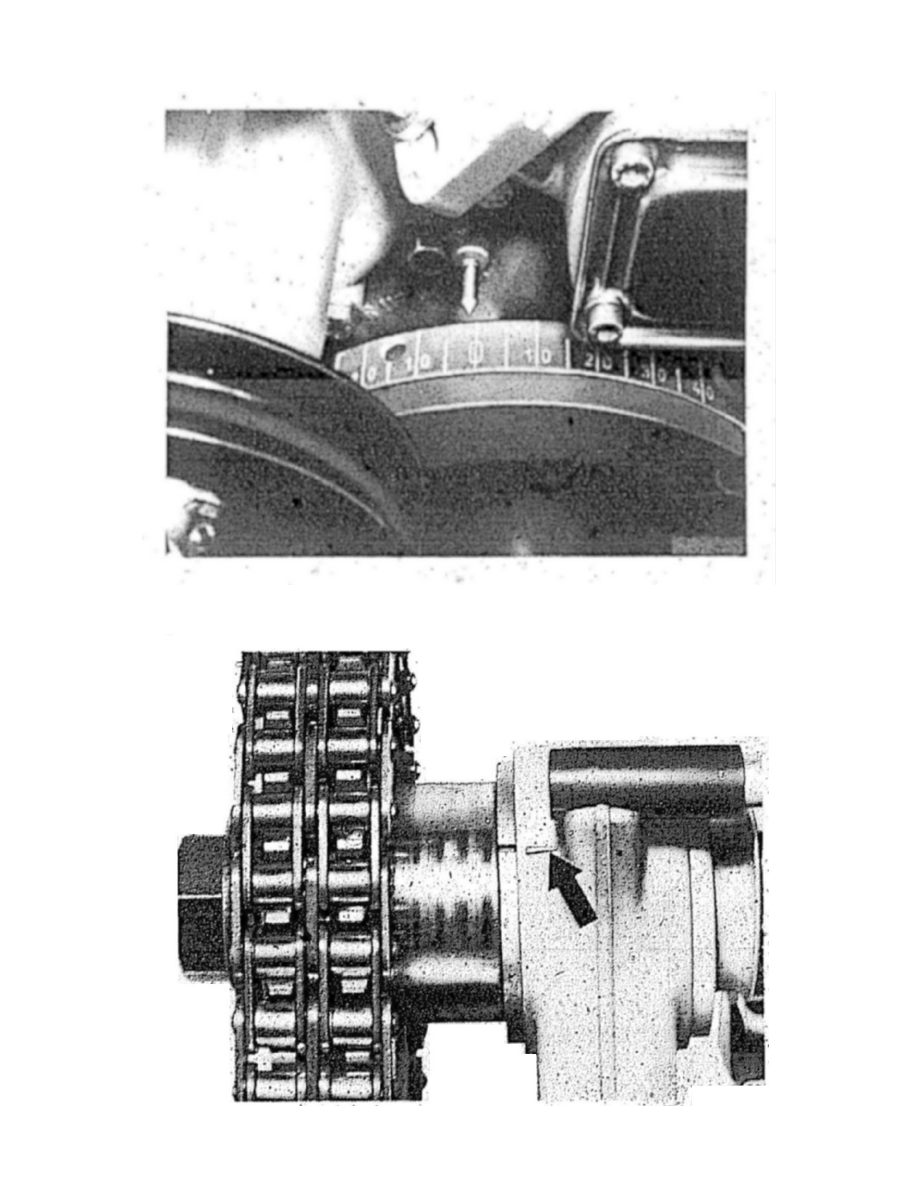

Timing Component Alignment Marks
Set engine to ignition TDC at No.1 cylinder.
If the markings (arrow) are not accurately lined up, check camshaft timing.
