Timing Component Alignment Marks: Locations
- Make
- Mercedes Benz
- Model
- 500 Series 500SEL (126.037)
- Engine
- V8-5.0L (117.963)
- Year
- 1984
- Section
- Timing Component Alignment Marks › Locations
MaintenanceLocations · page 1 of 2
/v8-5.0l_(117.963)/Page-248001.png)
Timing Component Alignment Marks: Locations
Timing Component Alignment Marks

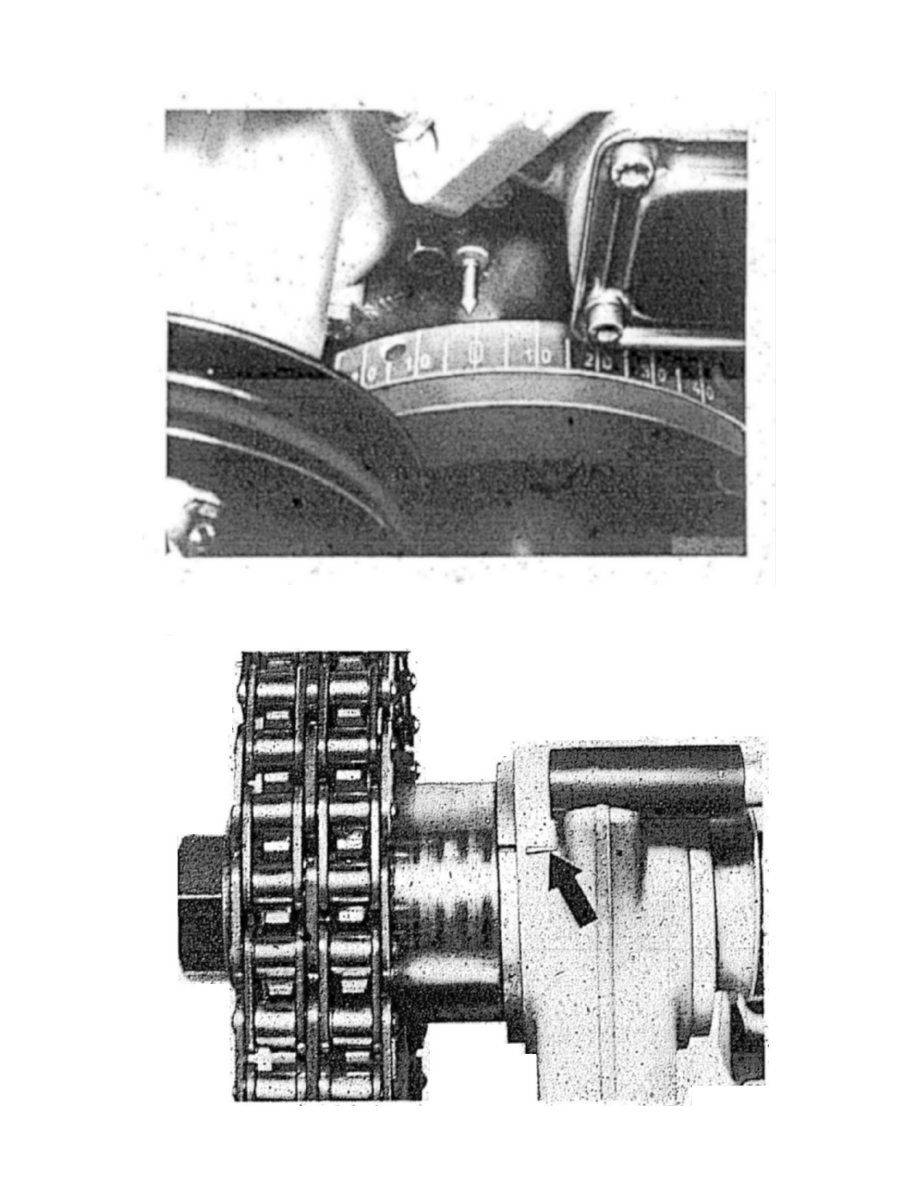

Set engine to ignition TDC at No.1 cylinder.
If the markings (arrow) are not accurately lined up, check camshaft timing.
