CL 65 AMG (215.379) V12-6.0L Turbo (275.980) (2006)

Page 1
background image

Refrigerator: Procedures

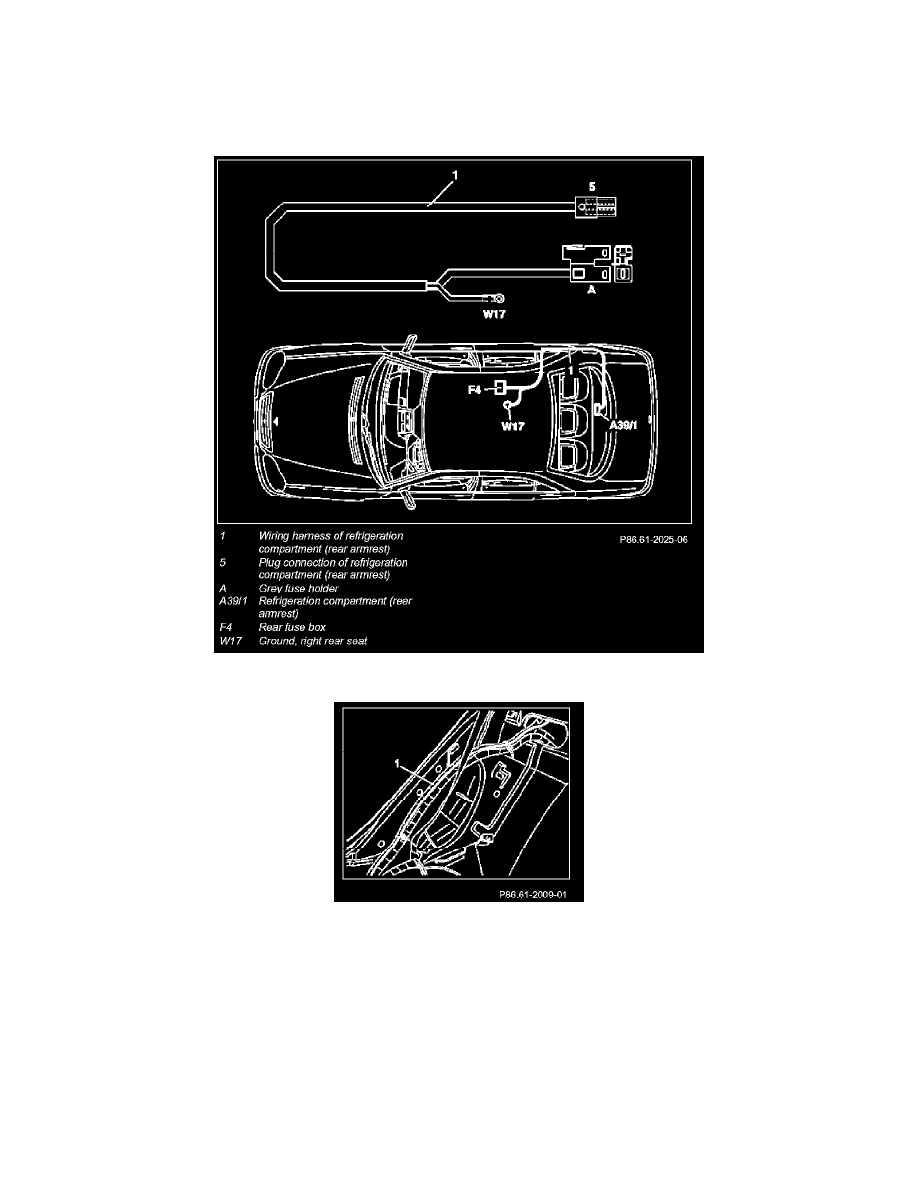

AZ86.61-P-0001-01M Retrofitting And Connecting Refrigerator Wiring Harness

AZ86.61-P-0001-01M Retrofitting And Connecting Refrigerator Wiring Harness

Component Identification

1. Route wiring harness (1) of refrigeration compartment (rear armrest) along existing cables to below right rear seat and fix in place with cable strap.
