Drive Belt|Testing and Inspection > < Timing Component Alignment Marks|Locations|Page 2019

CLK 320 Cabriolet (208.465) V6-3.2L (112.940) (2000)

Page 1
background image

Drive Belt: Diagrams

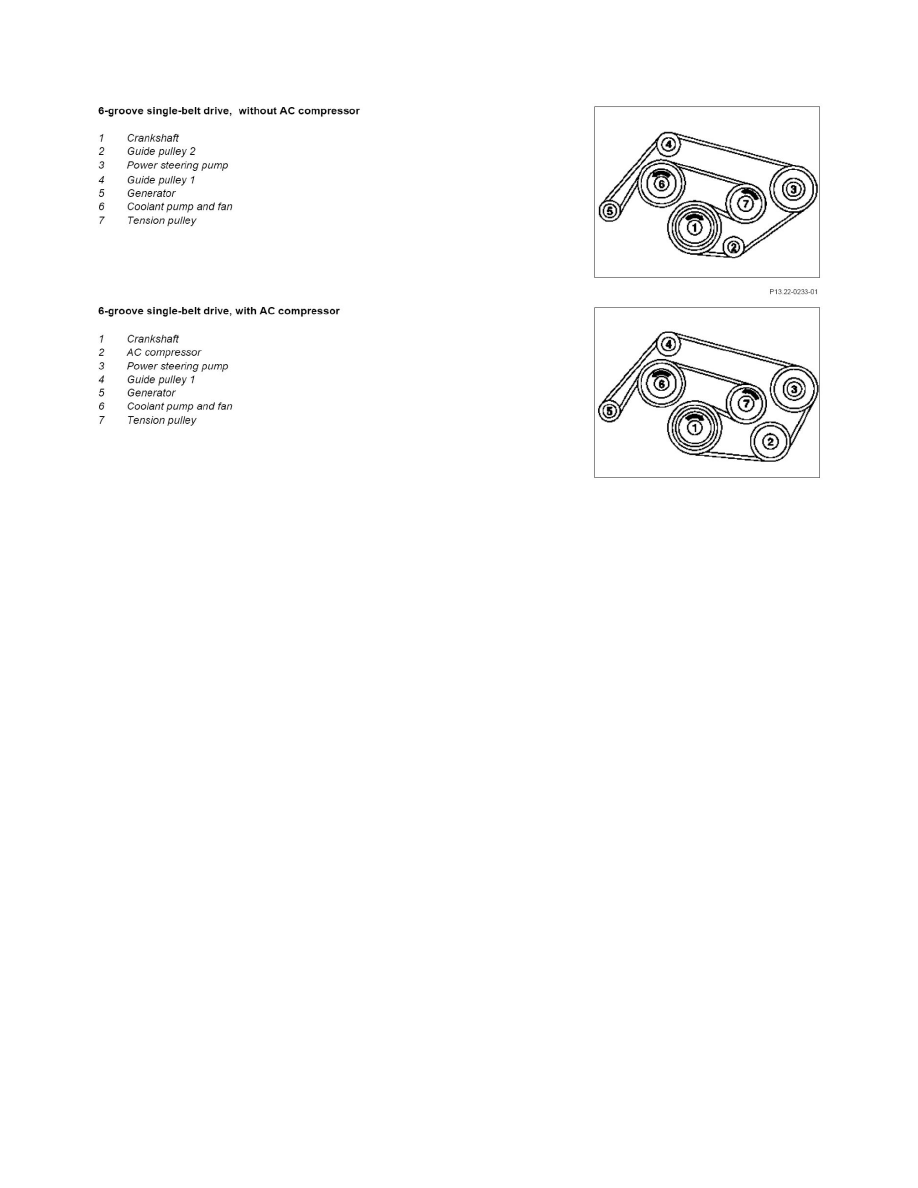

Ar13.22-P-3902-02B Running Diagram of Poly V-Belt

Drive Belt|Testing and Inspection > < Timing Component Alignment Marks|Locations|Page 2019
