Drive Belt: Diagrams

Make

Mercedes Benz

Model

CLK Class CLK 430 Cabriolet (208.470)

Engine

V8-4.3L (113.943)

Year

2000

Section

Drive Belt › Diagrams

MaintenanceDiagrams

Drive Belt: Diagrams

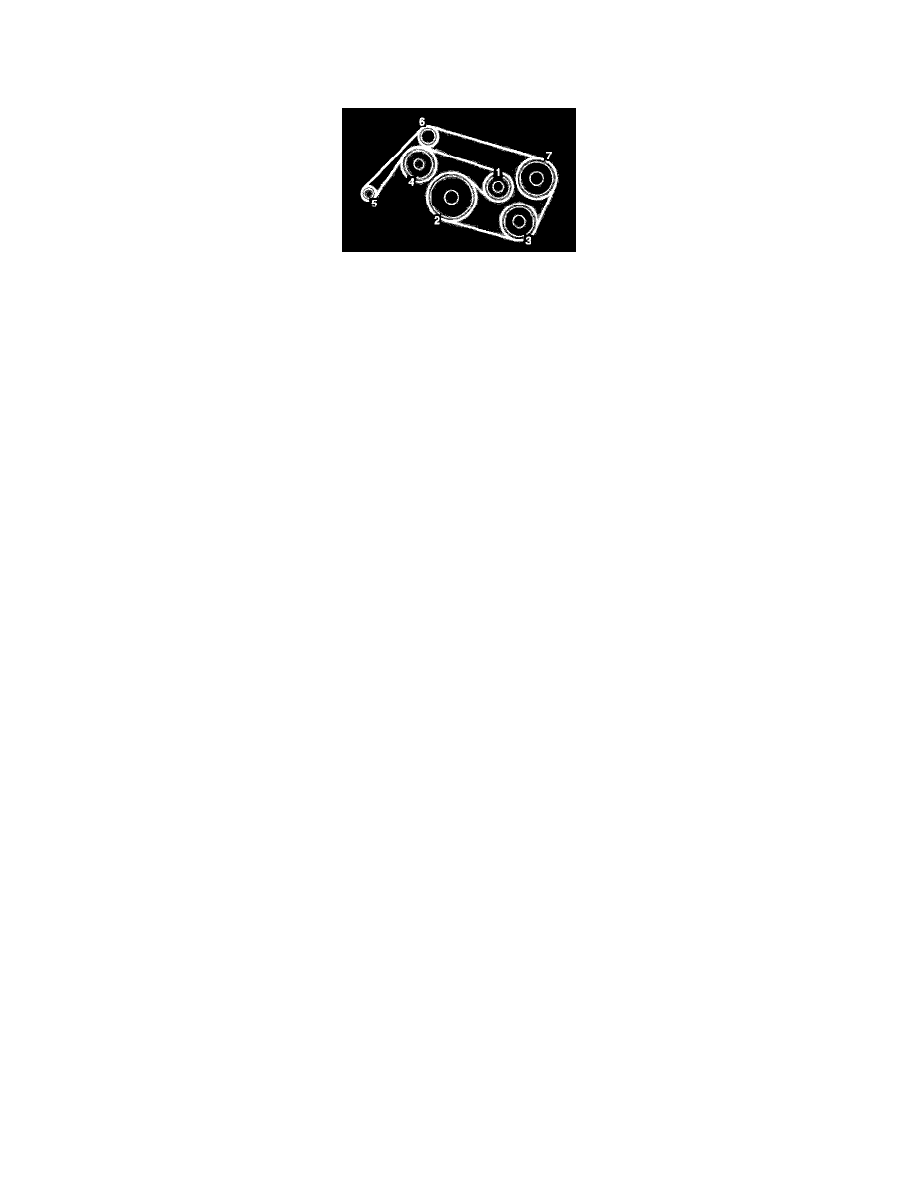

LAYOUT OF POLY-V-BELT DRIVE:

1 Automatic belt tensioner

2 Crankshaft

3 Air conditioner compressor

4 Coolant pump, fan

5 Generator (alternator)

6 Idler pulley

7 Power steering pump
