E 350 4MATIC Sedan (211.087) V6-3.5L (272.972) (2006)
Component Identification

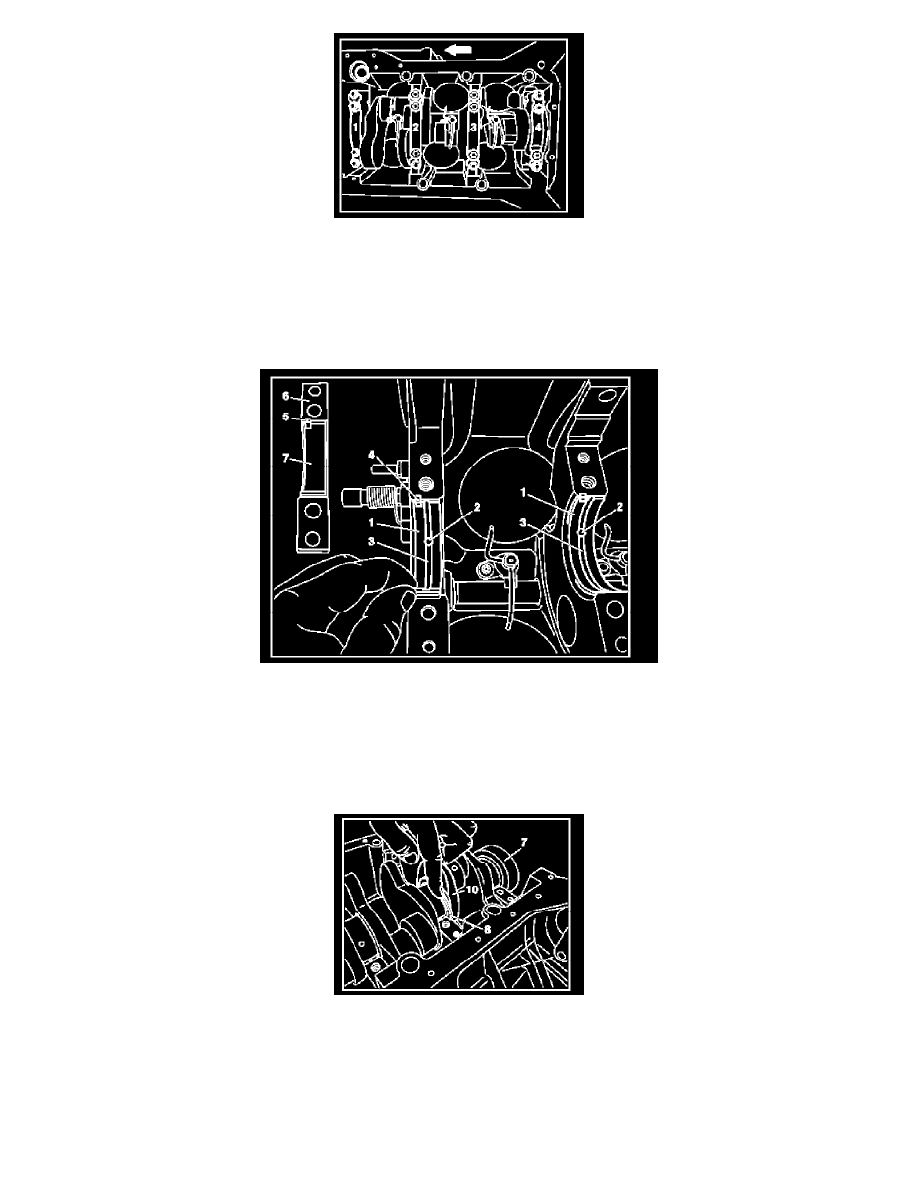

Arrow identifies direction of travel.
-
First letter r: A crankshaft bearing shell must be inserted in the crankshaft bearing cap (1) with the colored coding red
-
Second letter b: A crankshaft bearing shell must be inserted in the crankshaft bearing cap (2) with the colored coding blue.
-
Third letter v: A crankshaft bearing shell must be inserted in the crankshaft bearing cap (3) with the colored coding violet
-
Fourth letter w: A crankshaft bearing shell must be inserted in the crankshaft bearing cap (4) with the colored coding white.
Component Identification
2
Insert top crankshaft bearing shell halves (1) with the oil drill holes (2) and the oil grooves (3) into the crankcase.
When doing this, ensure that the anti-twist locks (4) of the crankshaft bearing shell halves (1) are located in the recesses of the crankcase.
3
Insert bottom bearing shell halves (7) into the bearing caps (6).
When doing this, ensure that the anti-twist locks (5) of the bottom crankshaft bearing shell halves (7) are located in the recesses of the crankshaft
bearing caps (6).
Component Identification
4
Insert crankshaft (7) in the crankcase.
5
Install top thrust washers (8).
There is only one fitted bearing width and therefore only one washer disc width is used.
The oil grooves of the thrust washers (8) must point toward the crankshaft webs (10).
