Drive Belt: Diagrams

Make

Mercedes Benz

Model

E Class E 430 4MATIC (210.083)

Engine

V8-4.3L (113.940)

Year

2000

Section

Drive Belt › Diagrams

MaintenanceDiagrams

Drive Belt: Diagrams

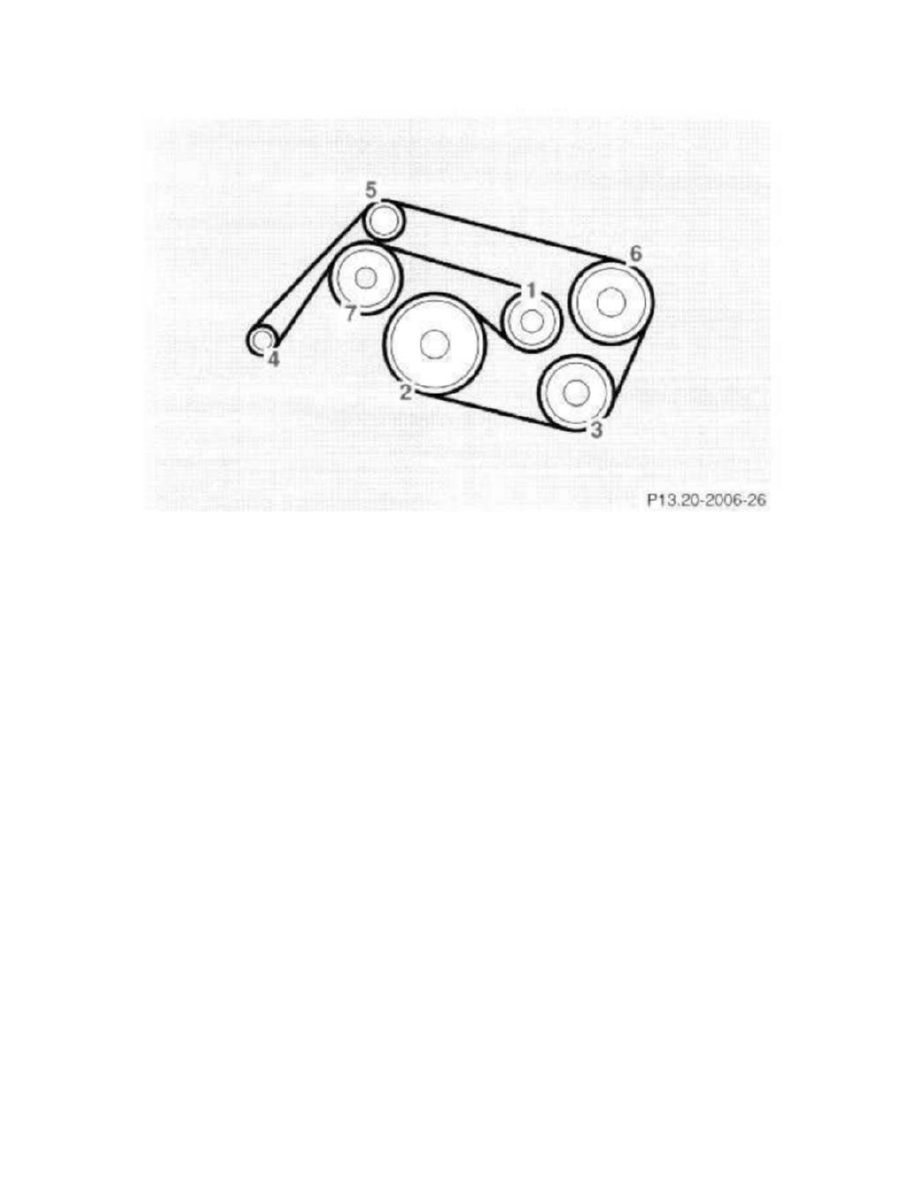

Layout of Poly-V-Belt Drive:

1 Automatic belt tensioner
2 Crankshaft
3 Air conditioner compressor
4 Generator (alternator)
5 Idler pulley
6 Power steering pump
7 Coolant pump fan
