Alignment: Specifications

Vehicle Alignment

Vehicle Level



Front Axle

Except ML55 AMG ................................................................................................................................................................................ 6.4° ±0.7°
ML55 AMG (163.174) ........................................................................................................................................................................... 4.0° ±0.7°

Rear Axle

Except ML55 AMG ................................................................................................................................................................................ 4.7° ±1.0°
ML55 AMG (163.174) ........................................................................................................................................................................... 2.9° ±1.2°

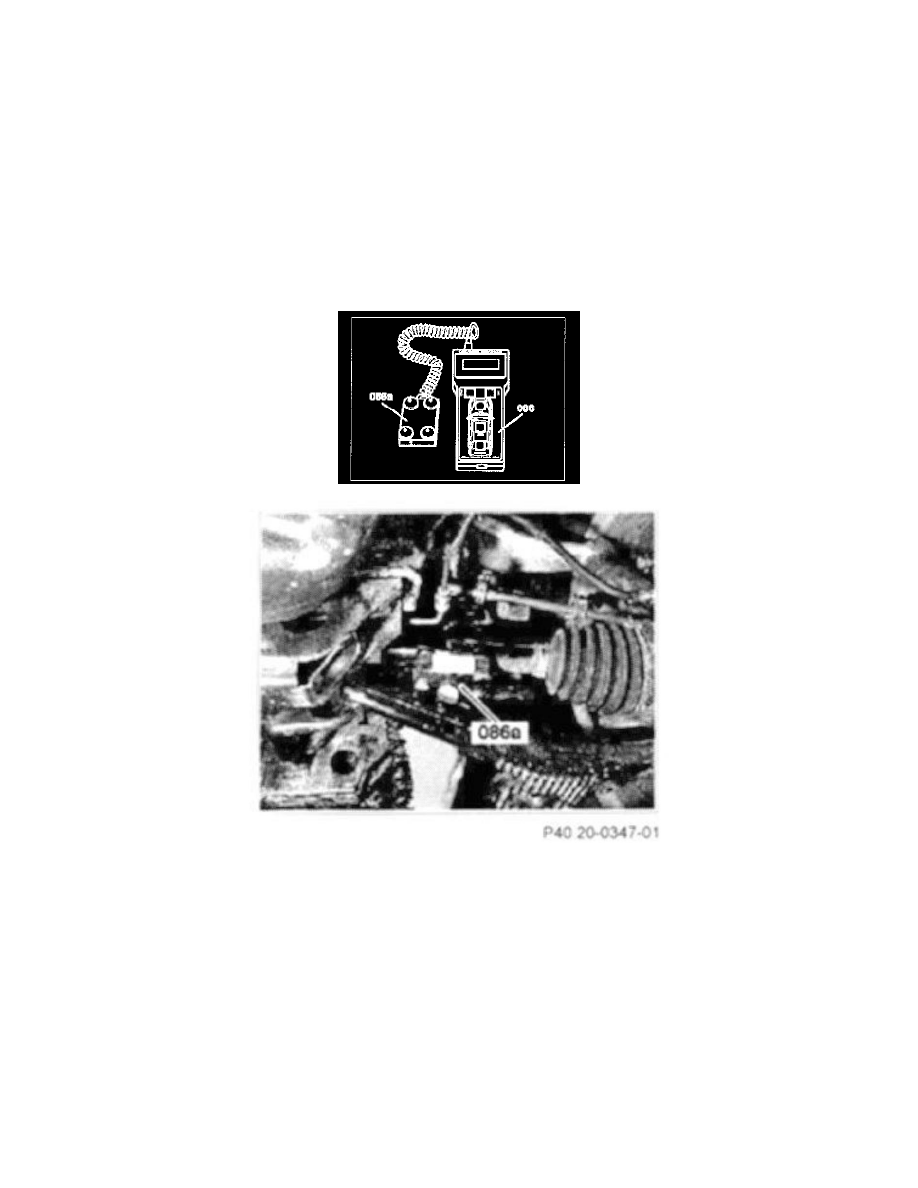

NOTE:  To measure vehicle level use (86) Electronic inclination measuring instrument (CM 9606)

Rear
