Knee Diverter: Locations
- Make
- Mercedes Benz
- Model
- SL Class SL 500 (129.067)
- Engine
- V8-5.0L (119.972)
- Year
- 1994
- Section
- Knee Diverter › Locations
Restraint SystemsLocations · page 1 of 3
/v8-5.0l_(119.972)/Page-2075001.png)

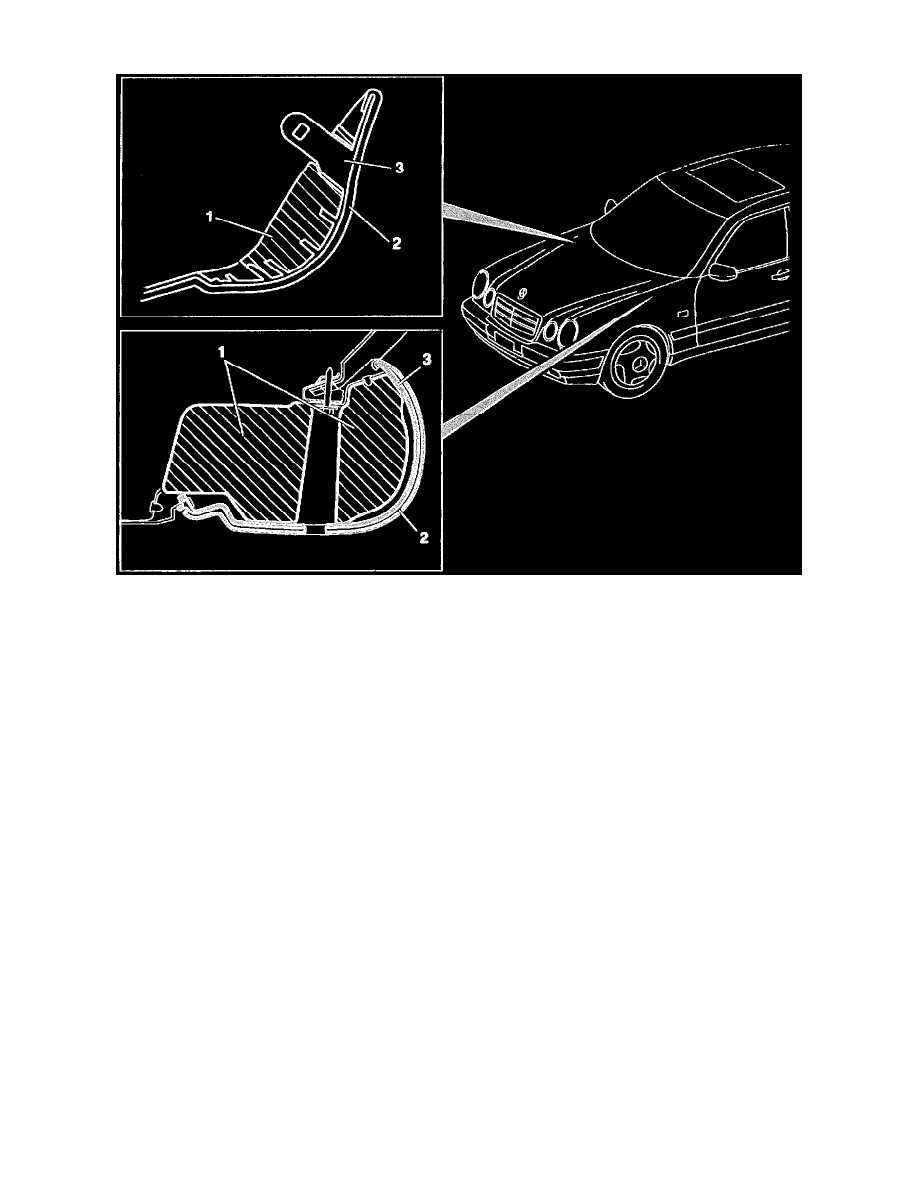

Knee Diverter: Locations
Model 210 Shown
1 Hard foam filling
2
Plastic cover with foam insert
3
Sheet metal panel
The energy absorbing coverings are located in the knee area of the driver and front seat passenger.
