Mercedes Benz SLK 320 (170.465) V6-3.2L (112.947) (2002)03 · Maintenance
03 · Maintenance

Drive Belt: Diagrams

Make
Mercedes Benz
Model
SLK Class SLK 320 (170.465)
Engine
V6-3.2L (112.947)
Year
2002
Section
Drive Belt › Diagrams
MaintenanceDiagrams
Drive Belt: Diagrams – Mercedes-Benz SLK 320 R170 V6-3.2L M112 (2002)

Drive Belt: Diagrams

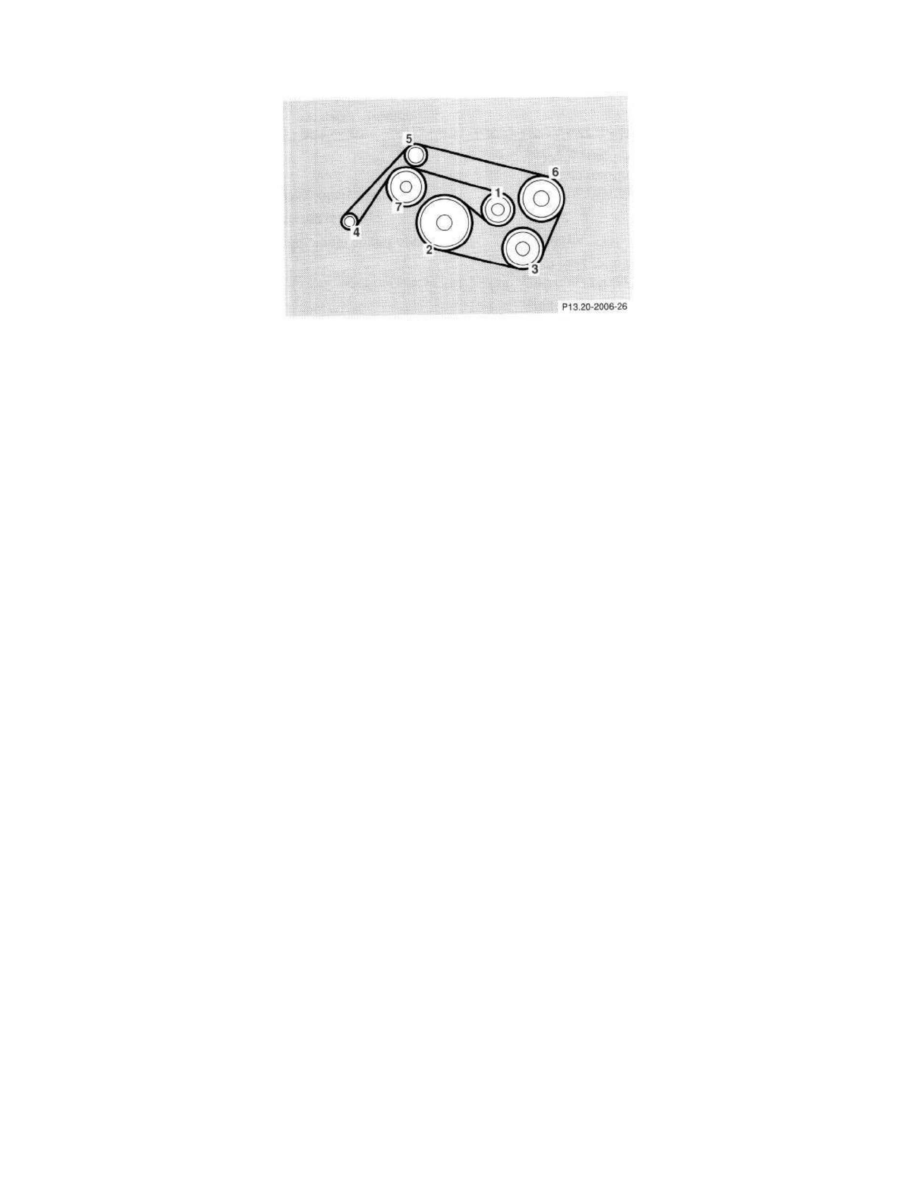

Layout of Poly-V-Belt Drive:

SLK 320 belt routing

1 Automatic belt tensioner

2 Crankshaft

3 Air conditioner compressor

4 Generator (alternator)

5 Idler pulley

6 Power steering pump

7 Coolant pump
