Cruise Control Switch: Diagrams
- Make
- Mercury
- Model
- Cougar/XR7
- Engine
- V6-232 3.8L
- Year
- 1982
- Section
- Cruise Control Switch › Diagrams
Cruise ControlDiagrams · page 1 of 5
Cruise Control Switch: Diagrams

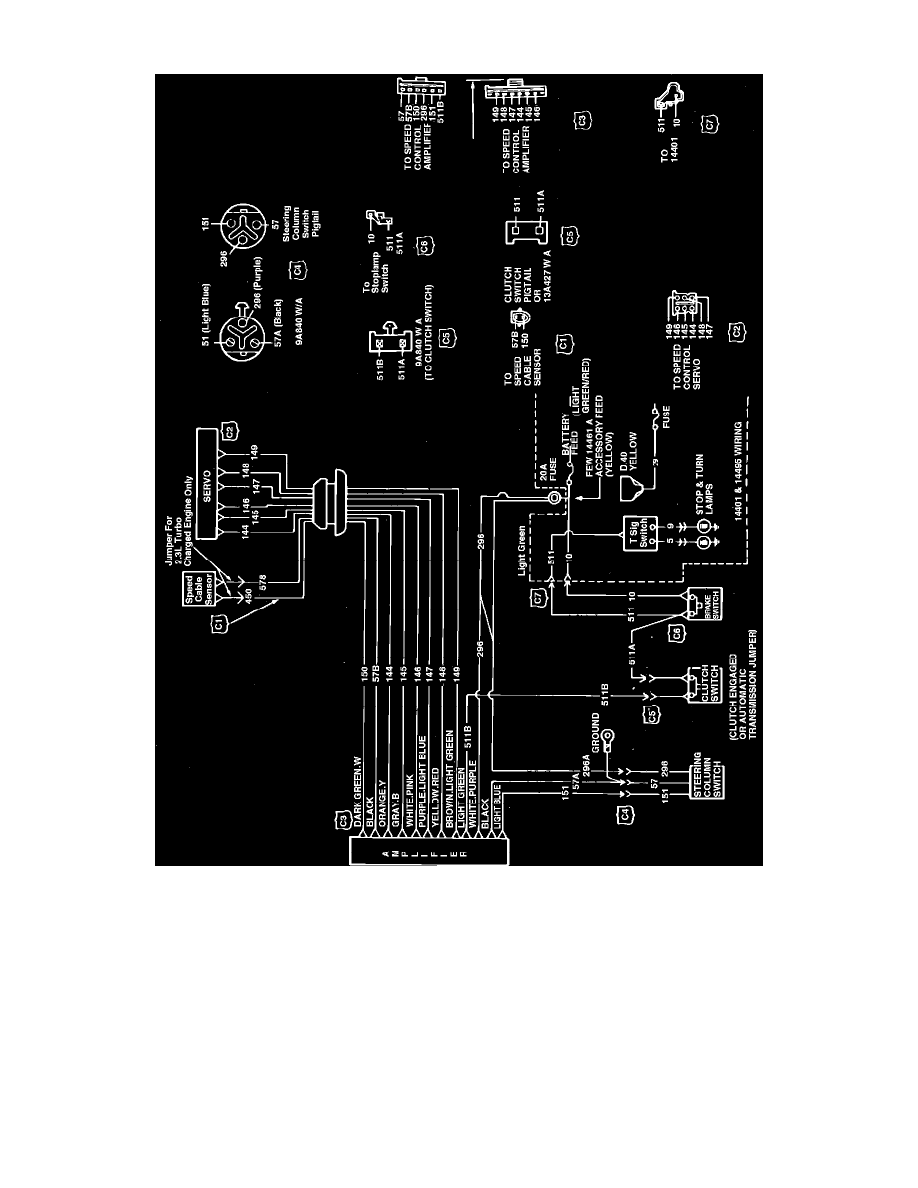

Fig. 1 Speed control wiring schematic (typical). 1982---83 Fairmont & Zephyr, 1982---87 Mustang & Capri; 1982 Granada; 1982---83 Cougar; 1983---86 LTD & Marquis
