Mariner 2WD V6-3.0L (2008)

Page 1
background image

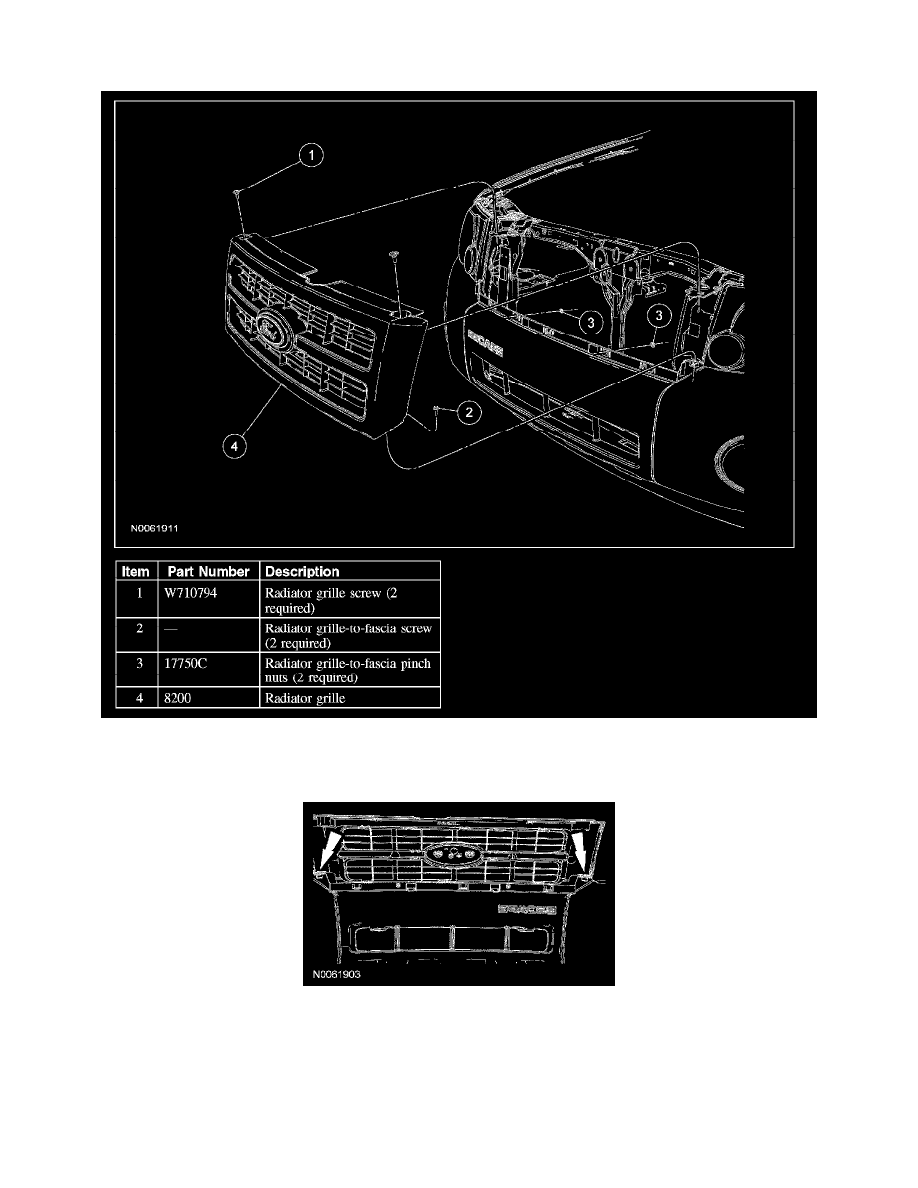

Grille: Service and Repair

RADIATOR GRILLE

Removal and Installation

1. Remove the front bumper cover.
2. Remove the 2 radiator grille-to-fascia screws.

3. Remove the 2 radiator grille pinch nuts.
