Flywheel: Specifications
^
NOTE: Special bolts are used for installation. Do not use standard bolts.

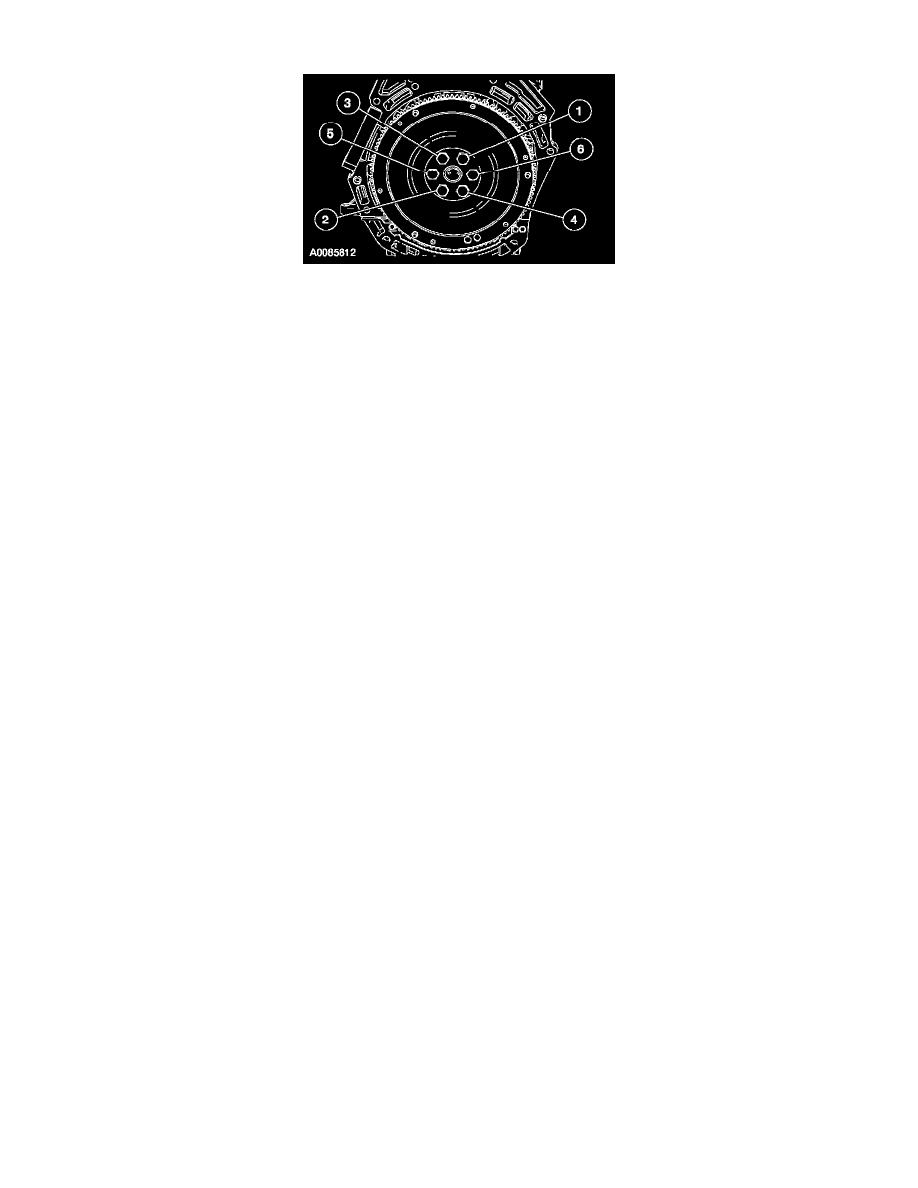

Install the flywheel and tighten the bolts in the sequence shown in 3 stages.
^
Stage 1: Tighten to ................................................................................................................................................................... 50 Nm (37 ft. lbs.).
^
Stage 2: Tighten to ................................................................................................................................................................... 80 Nm (50 ft. lbs.).
^
Stage 3: Tighten to ................................................................................................................................................................. 112 Nm (83 ft. lbs.).
