Exploded Views|Page 2077 > < Engine - Drive Belt Squeal|Page 2074

Milan L4-2.3L VIN Z (2006)

Page 1
background image

Drive Belt: Exploded Views

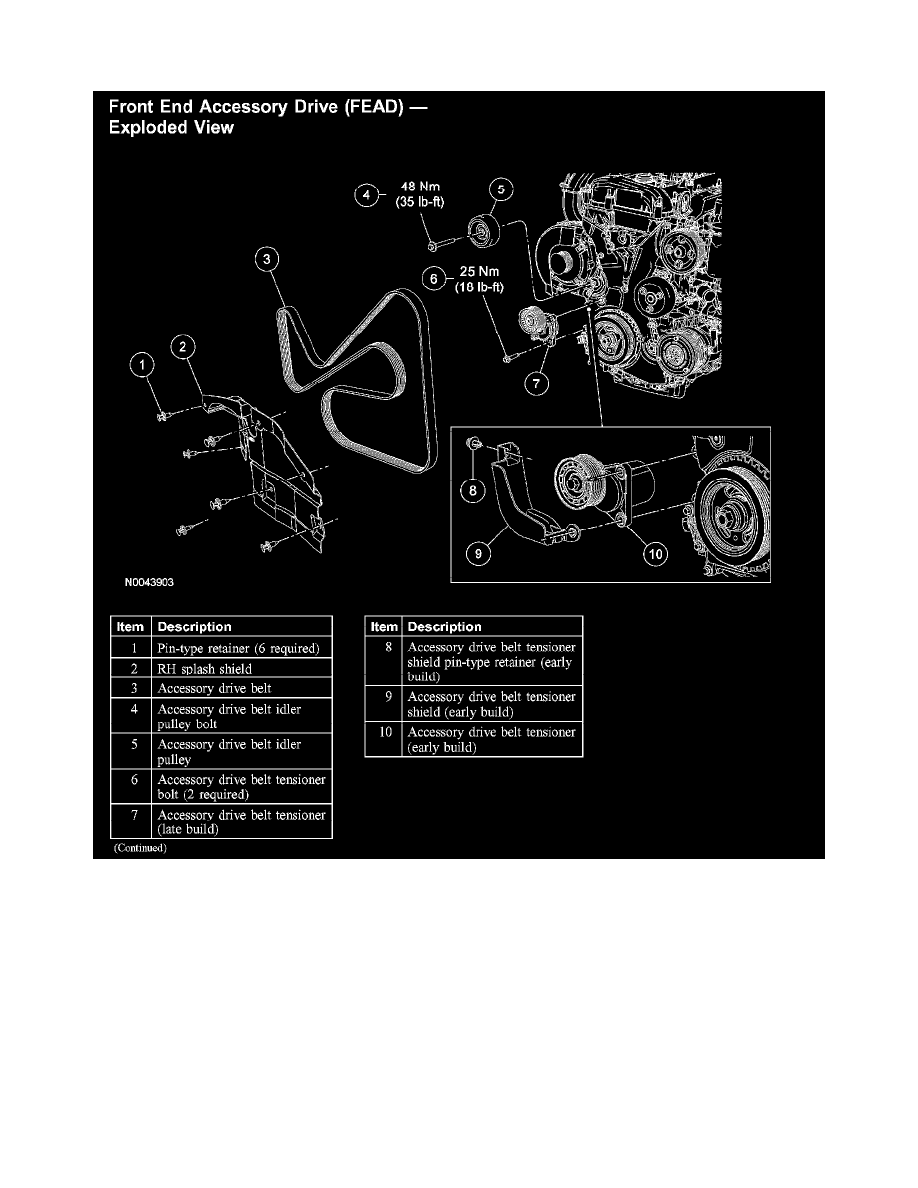

Front End Accessory Drive (FEAD) - Exploded View



Front End Accessory Drive (FEAD) - Exploded View

Exploded Views|Page 2077 > < Engine - Drive Belt Squeal|Page 2074
