Milan AWD L4-2.3L (2008)
Wiper Arm: Adjustments
WIPER BLADE AND PIVOT ARM ADJUSTMENT
1. Cycle and park the windshield wipers.

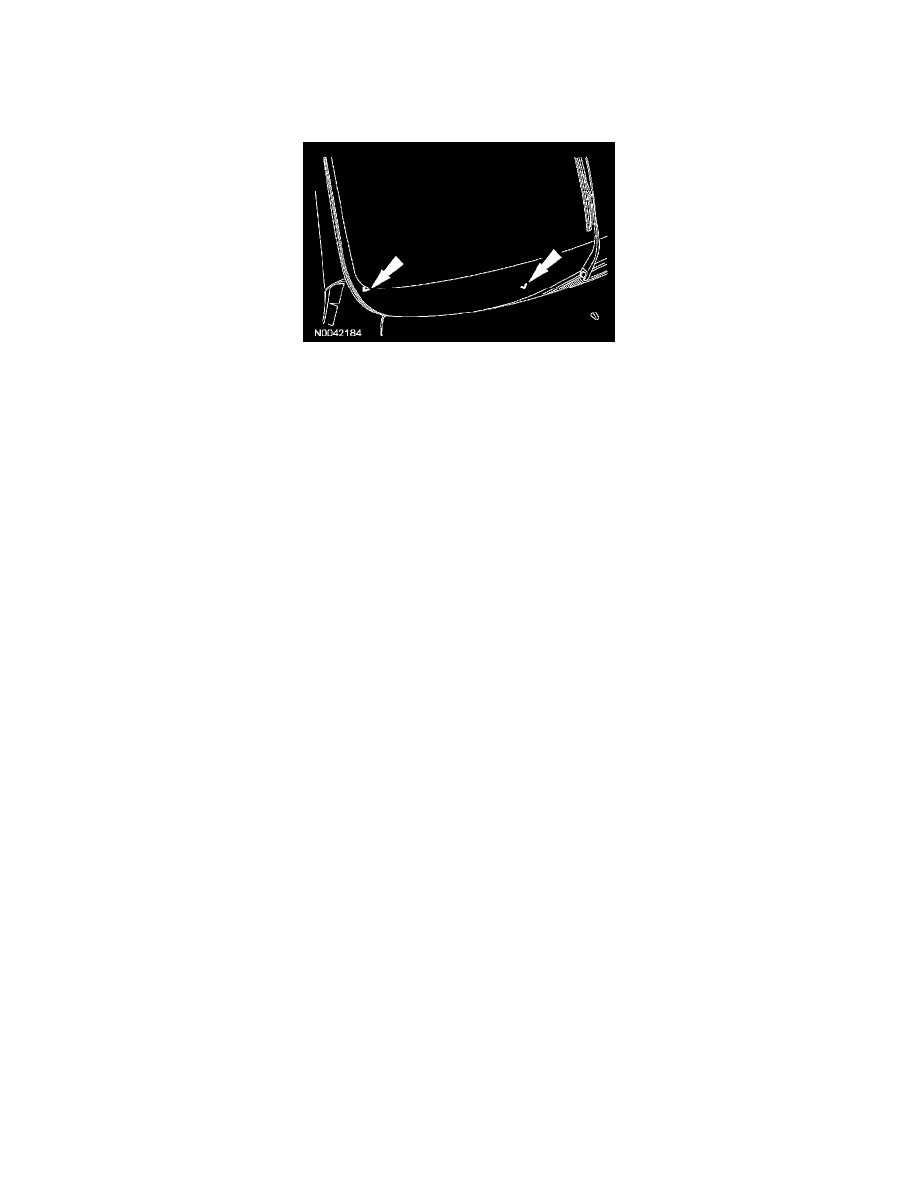

2. Verify that the RH and LH wiper blades are located at the alignment marks on the glass.
3. If necessary, remove the nuts and the windshield wiper pivot arms and reposition them to the correct locations.
-
To install, tighten to 20 Nm (15 lb-ft).
