Body and FrameService and Repair
Grille: Service and Repair

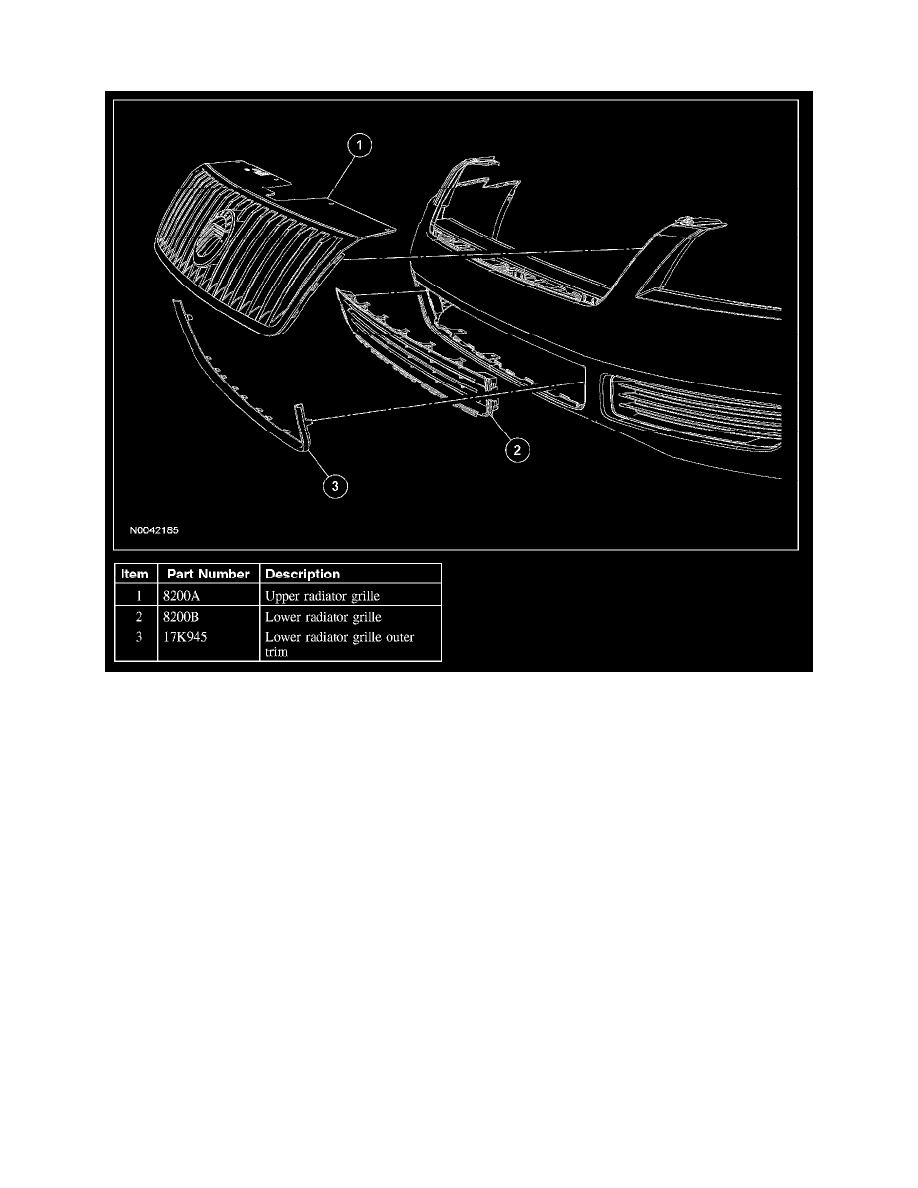

RADIATOR GRILLE
Removal and Installation
1. Remove the front bumper cover.
2. Remove the upper radiator grille from the clips on the bumper cover.
3. Remove the lower radiator grille outer trim cover from the clips on the bumper cover.
4. Remove the lower radiator grille from the clips on the bumper cover.
5. To install, reverse the removal procedure.
