Mountaineer AWD V8-4.6L (2010)

Page 1
background image

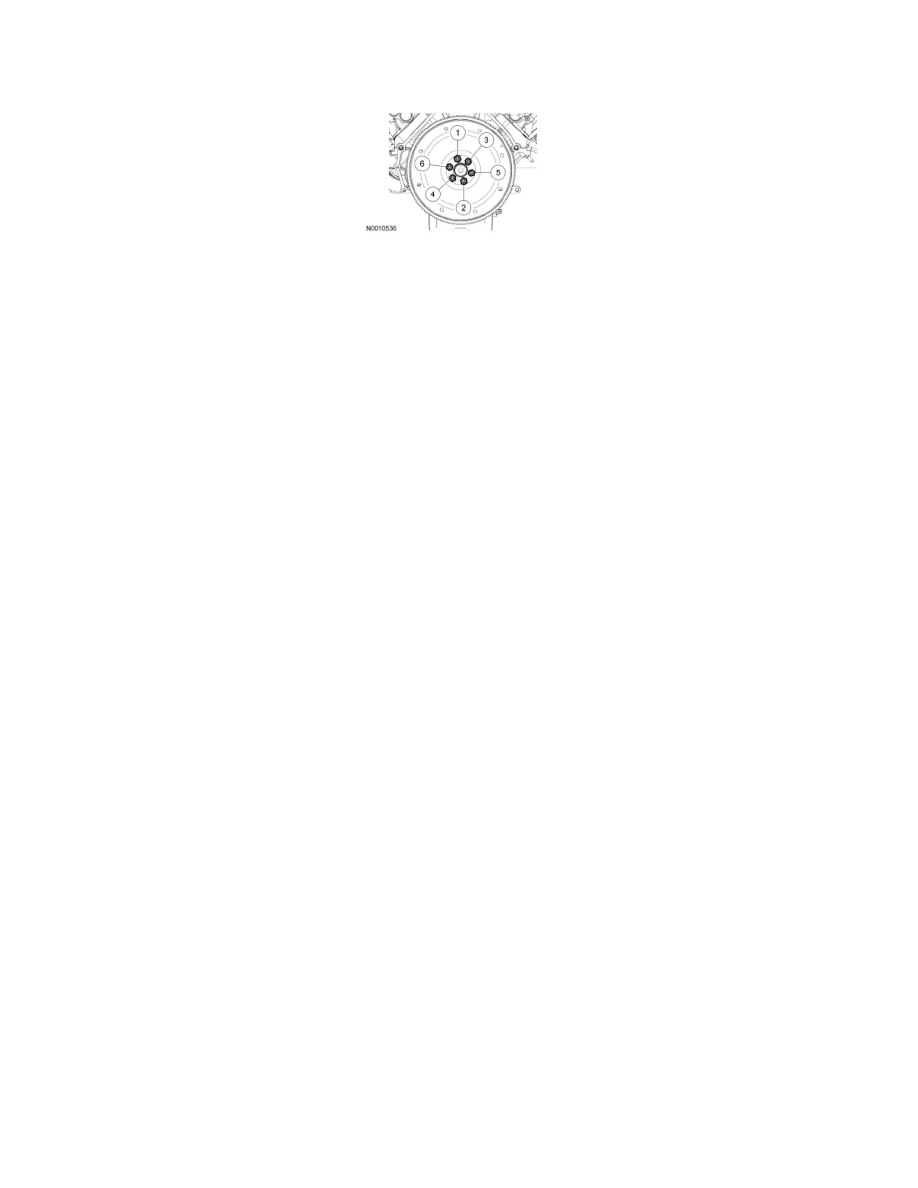

Flex Plate: Specifications

Remove the 6 bolts and the flexplate.
To install, tighten to..................................................................................................................................................80 Nm (59 lb-ft) in the sequence shown.
