Wiper and Washer SystemsAdjustments
Wiper Arm: Adjustments
Wiper Blade and Pivot Arm Adjustment - Windshield
1. Cycle and park the windshield wipers.

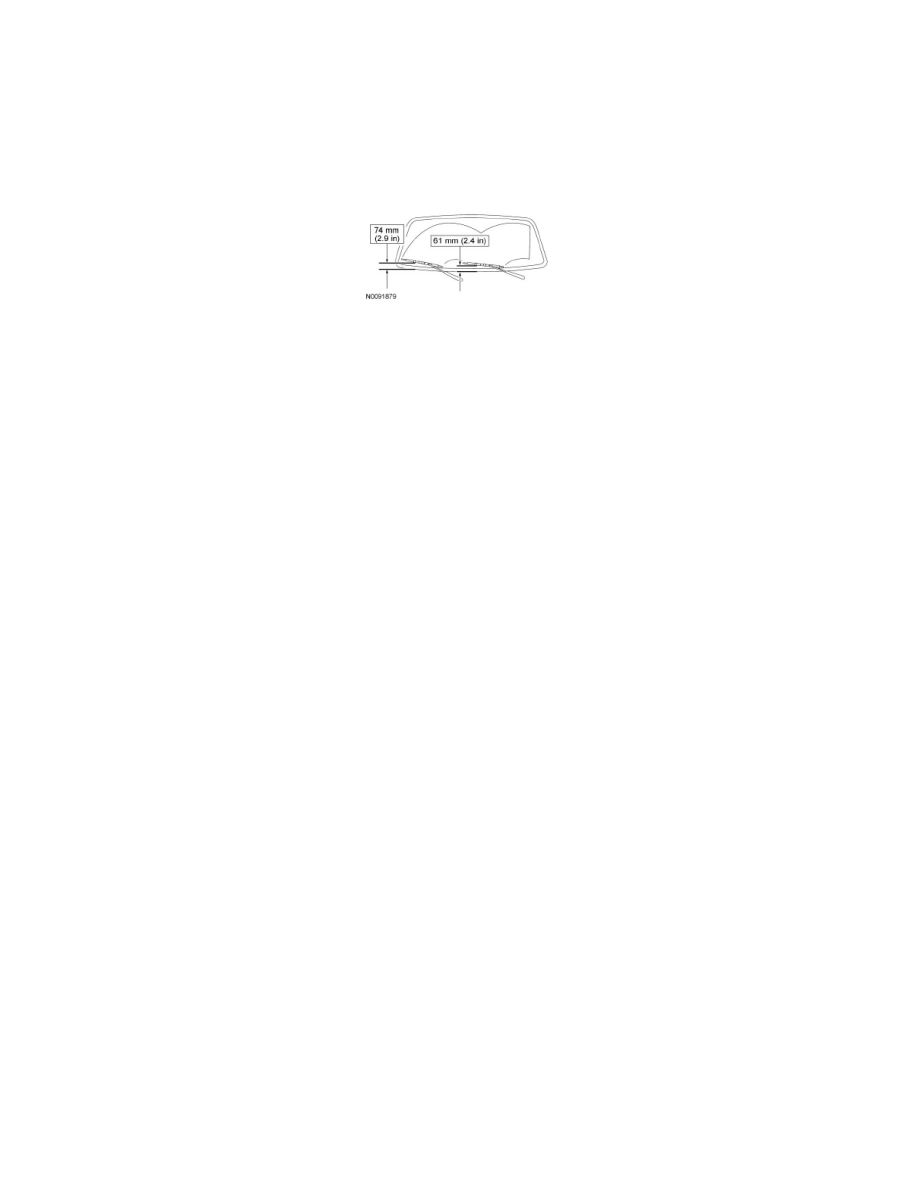

2. Verify that the RH and LH wiper blades are located at the specified position.
3. NOTE: Make sure there is no mechanical binding in the linkage preventing the wiper arms from returning to the fully parked position.
If the distance is not within specification, remove the windshield wiper pivot arm and reposition to specification.
