Sable V6-3.0L DOHC VIN S (2002)
Brake Bleeding: Service and Repair
Four Wheel ABS Hydraulic Control Unit (HCU)
Four Wheel Anti-Lock Brake System (4WABS) Hydraulic Control Unit (HCU)
WARNING: Use of any other than approved DOT 3 or DOT 4 brake fluid will cause permanent damage to brake components and will
render the brakes inoperative.
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If
brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internal1y, drink
water and induce vomiting. Get medical attention immediately.
CAUTION: Brake fluid is harmful to painted or plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with
water.
CAUTION: Do not allow the master cylinder to run dry during the bleeding operation. Keep the master cylinder reservoir filled with the specified
brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.
NOTE: This procedure only needs to be carried out if a new 4-Wheel Anti-Lock Brake (4WABS) Hydraulic Control Unit (HCU) has been installed.
All vehicles

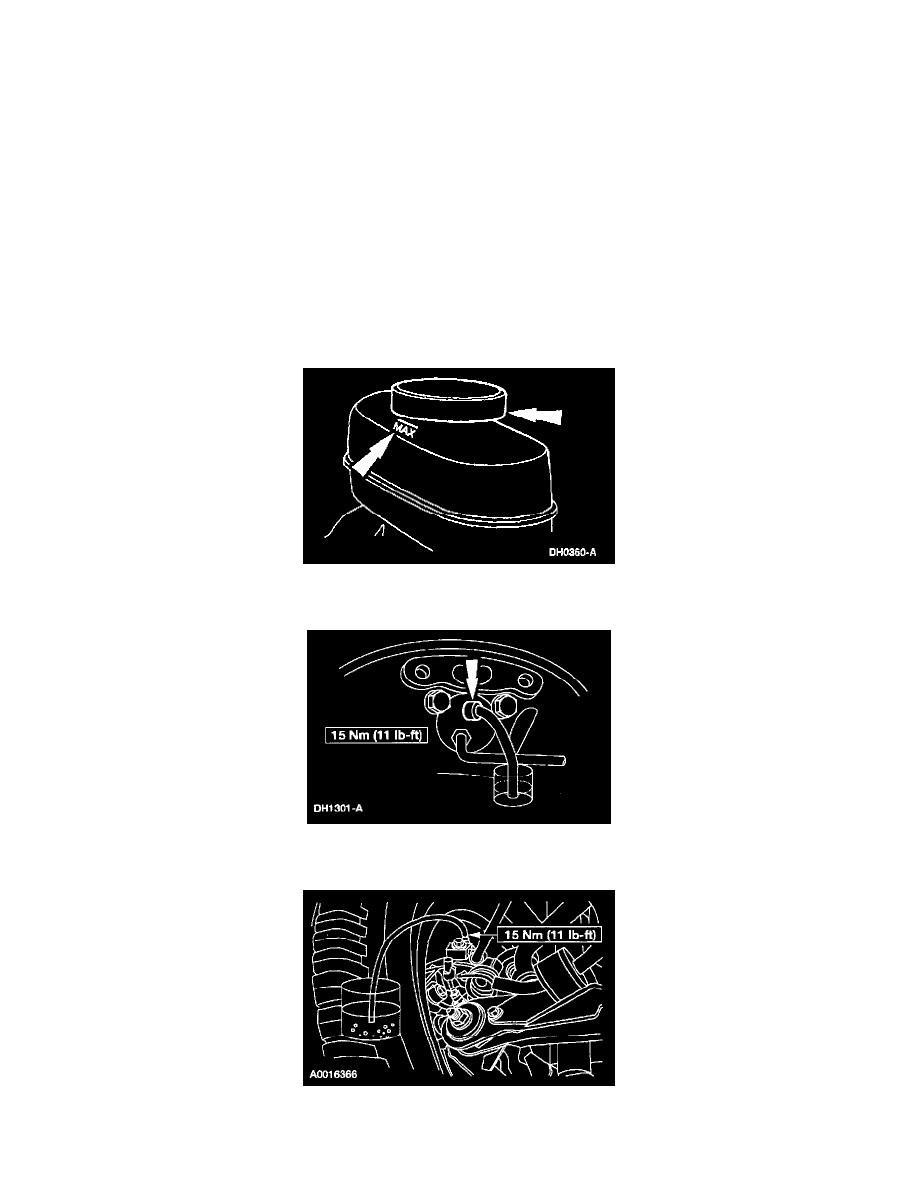

1. Clean all dirt from and remove the brake master cylinder filler cap and fill the brake master cylinder reservoir with the specified brake fluid.
Vehicles with rear drum brakes

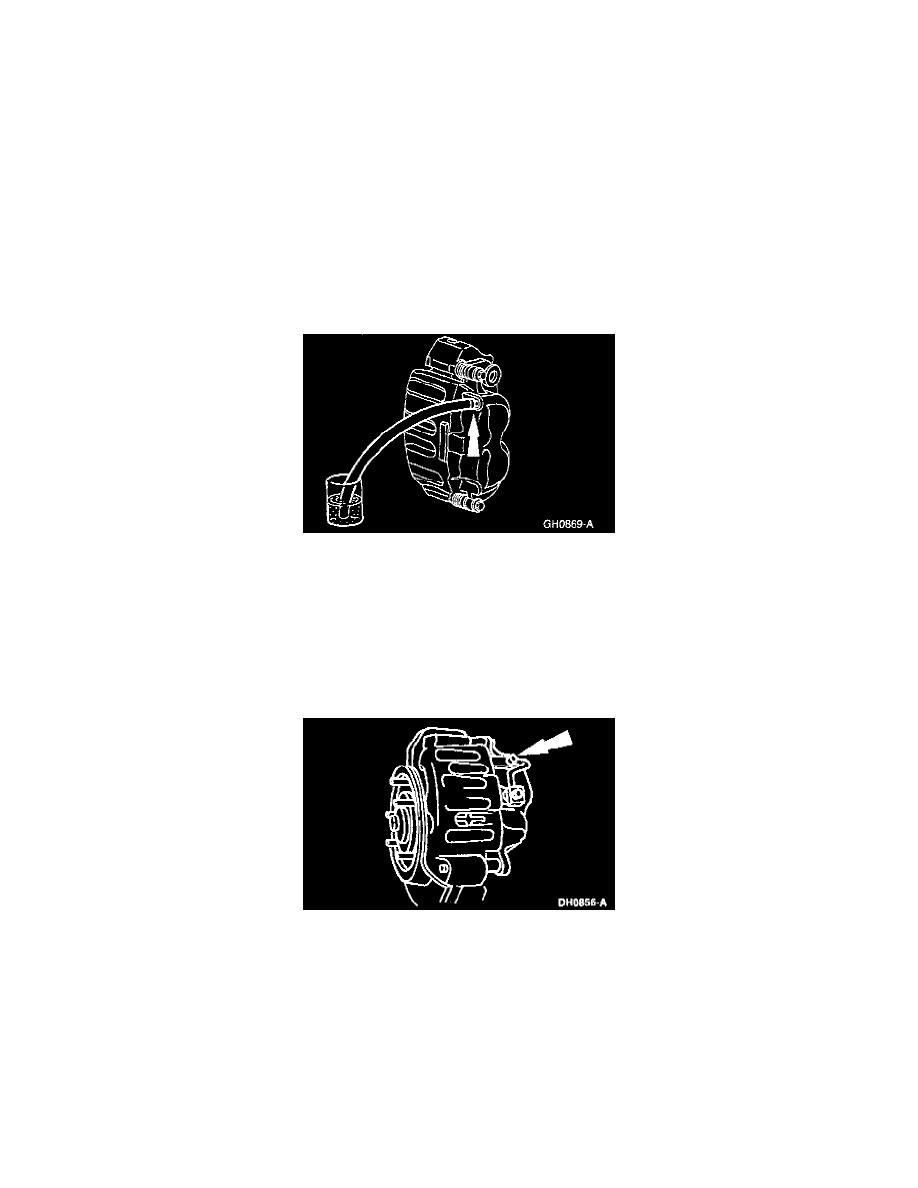

2. Connect a clear drain tube to the RH rear bleeder screw and the other end in a container partially filled with recommended brake fluid.
Vehicles with rear disc brakes
3. Connect a clear drain tube to the RH rear bleeder screw and the other end in a container partially filled with recommended brake fluid.
