Sable V6-3.0L DOHC VIN S (2002)
Air Door Actuator / Motor: Service and Repair

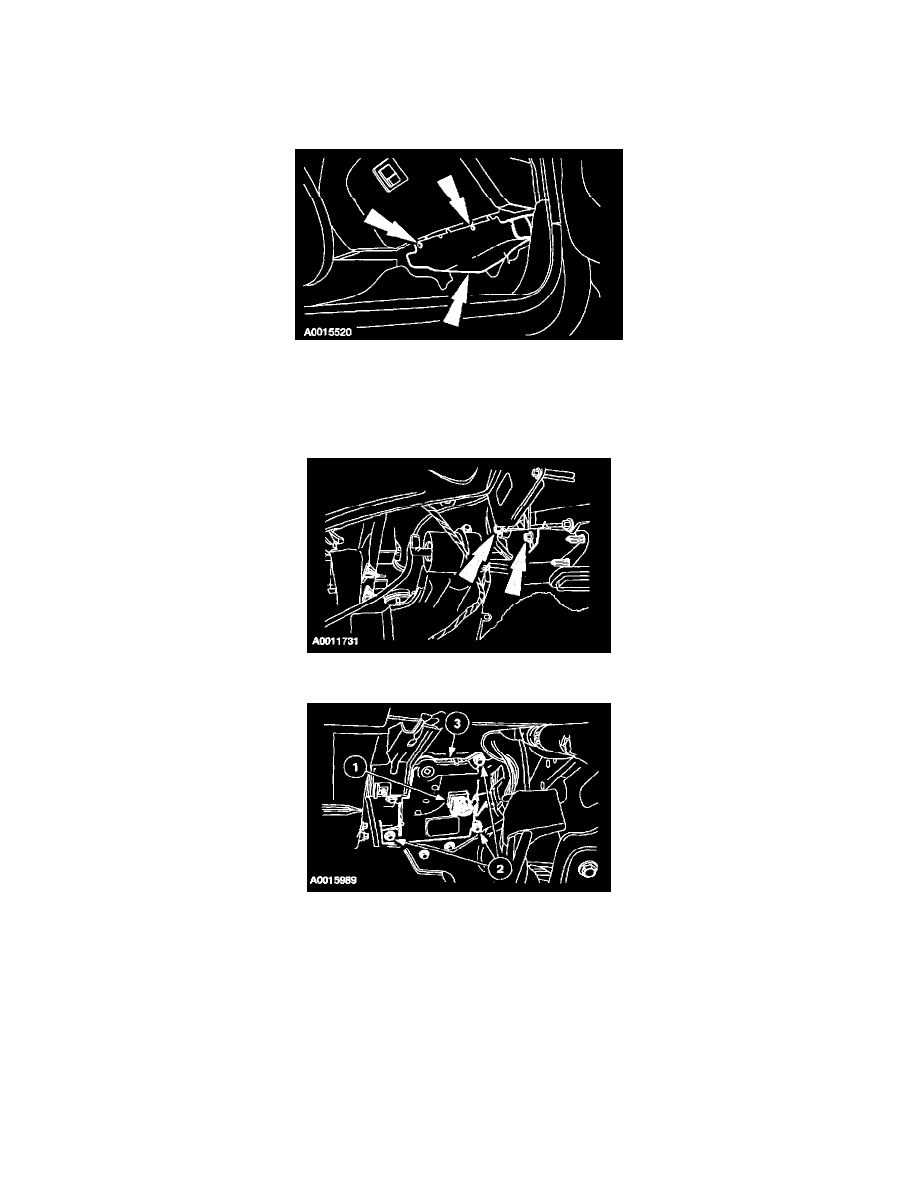

Temperature Blend Door Actuator
REMOVAL
1. Remove the integrated control panel.
2. Remove the right-side lower instrument panel insulator and glove box.
VEHICLES WITH EATC
3. Remove the 2 remote climate control module screws and position the module aside.
4. Remove the temperature blend door linkage shield.
5. Remove the temperature blend door actuator.
1
Disconnect the electrical connector.
2
Remove the screws.
3
Remove the temperature blend door actuator.
INSTALLATION
1. To install, reverse the removal procedure.
