Sable V6-3.0L DOHC VIN S (2002)
7. NOTE: If the pin-type retainers are damaged, install new retainers. This will keep the wire harness routed correctly.

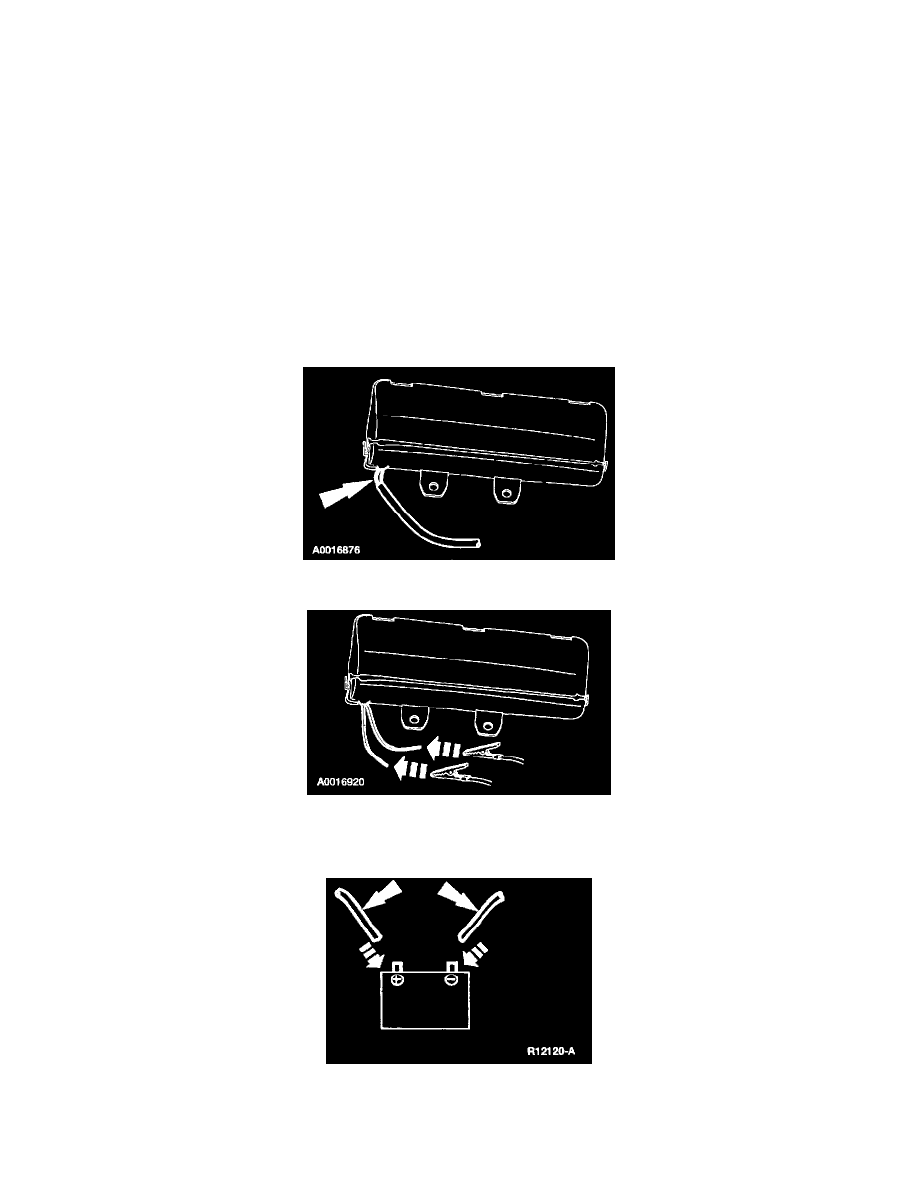

Remove the side air bag wire harness pin-type retainer from the side of the seat back frame.
8. WARNING: Do not disconnect the wire connector at the side air bag module. This is a permanent connection. Doing so may result in air
bag accidental deployment, which may result in personal injury.
NOTE: If the pin-type retainers are damaged, install new retainers. This will keep the wire harness routed correctly.
Remove the pin-type retainers and separate the side air bag module wire harness from the seat back frame.
9. NOTE: If installing a new side air bag module, use new retaining nuts. If the same side air bag module is to be reused, then reuse the side air bag
module nuts.
Remove the side air bag module retaining nuts.
