Sable V6-3.0L DOHC VIN S (2002)
10. Through the opening in the front outboard side of the seat back cushion remove the side air bag module with the wire harness.
Installation
All seats
1. WARNING:
-
Inspect the mounting surfaces of the side air bag module and the seat back frame mounting bracket for any foreign objects before
installing the side air bag module. If any foreign objects are found, remove them. Failure to do so may result in personal injury in the
event of an air bag deployment.
-
Inspect the side air bag cavity in the seat back pad for any foreign objects. If any foreign objects are found, remove them. Failure to
do so may result in personal injury in the event of an air bag deployment.
-
Before installing the side air bag module, check it for damage and foreign objects. If the air bag module is damaged, replace it. If any
foreign objects are found, remove them. Failure to do so may result in personal injury in the event of an air bag deployment.
-
If the air bag cover has separated or the air bag material has been exposed, install a new side air bag module. Do not attempt to repair
the air bag module. Failure to do so may result in personal injury, in the event of an air bag deployment.

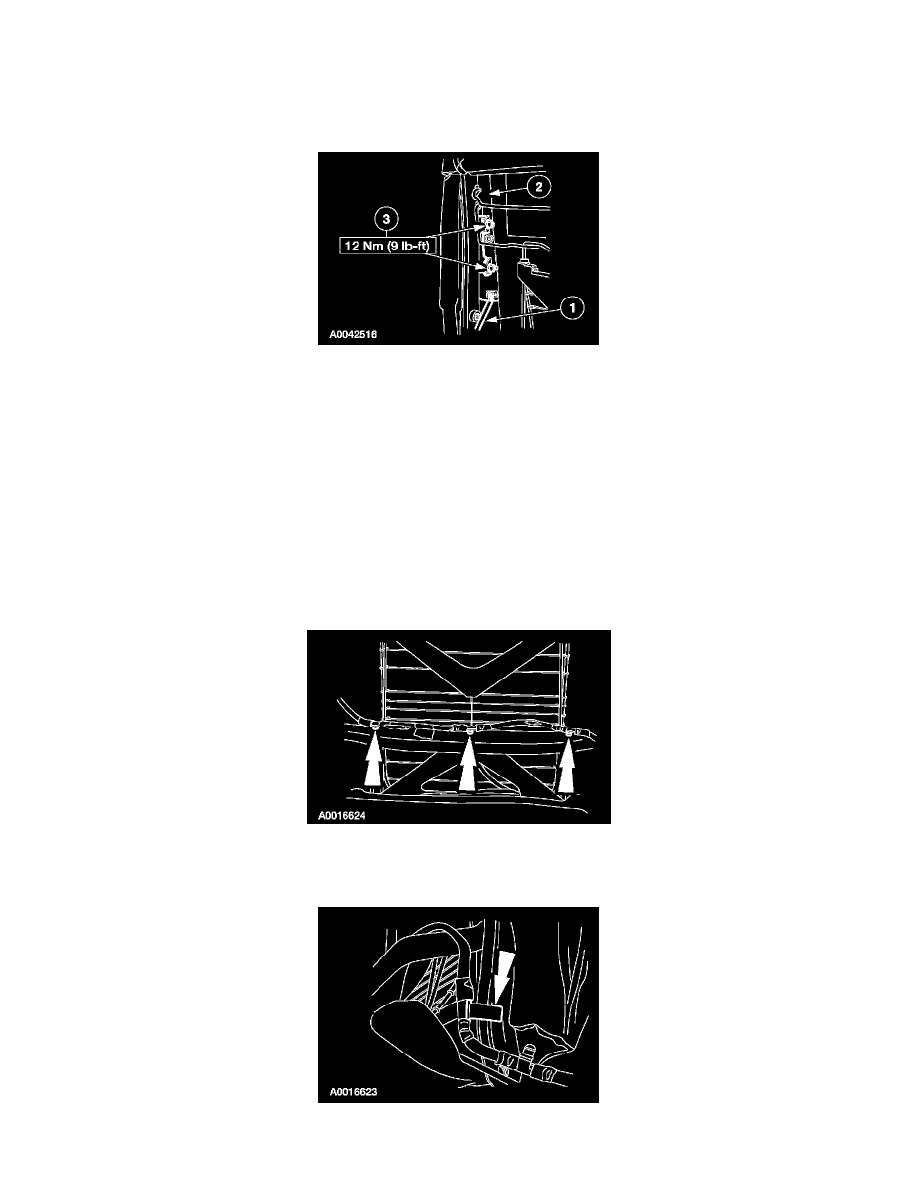

Install the side air bag module onto the front seat back frame mounting bracket.
1
Route the side air bag module wiring harness through the outboard opening in the side of the seat back cushion.
2
Position the side air bag module through the outboard opening in the side of the seat back cushion and onto the mounting bracket.
3
Install the side air bag module retaining nuts to specification.
2. NOTE: If the pin-type retainers are damaged, install new retainers. This will keep the wire harness routed correctly.
Route the side air bag module wire harness along the seat back frame and install the pin-type retainers.
3. NOTE: If the pin-type retainers are damaged, install new retainers. This will keep the wire harness routed correctly.
