Alignment: Service and Repair
Camber

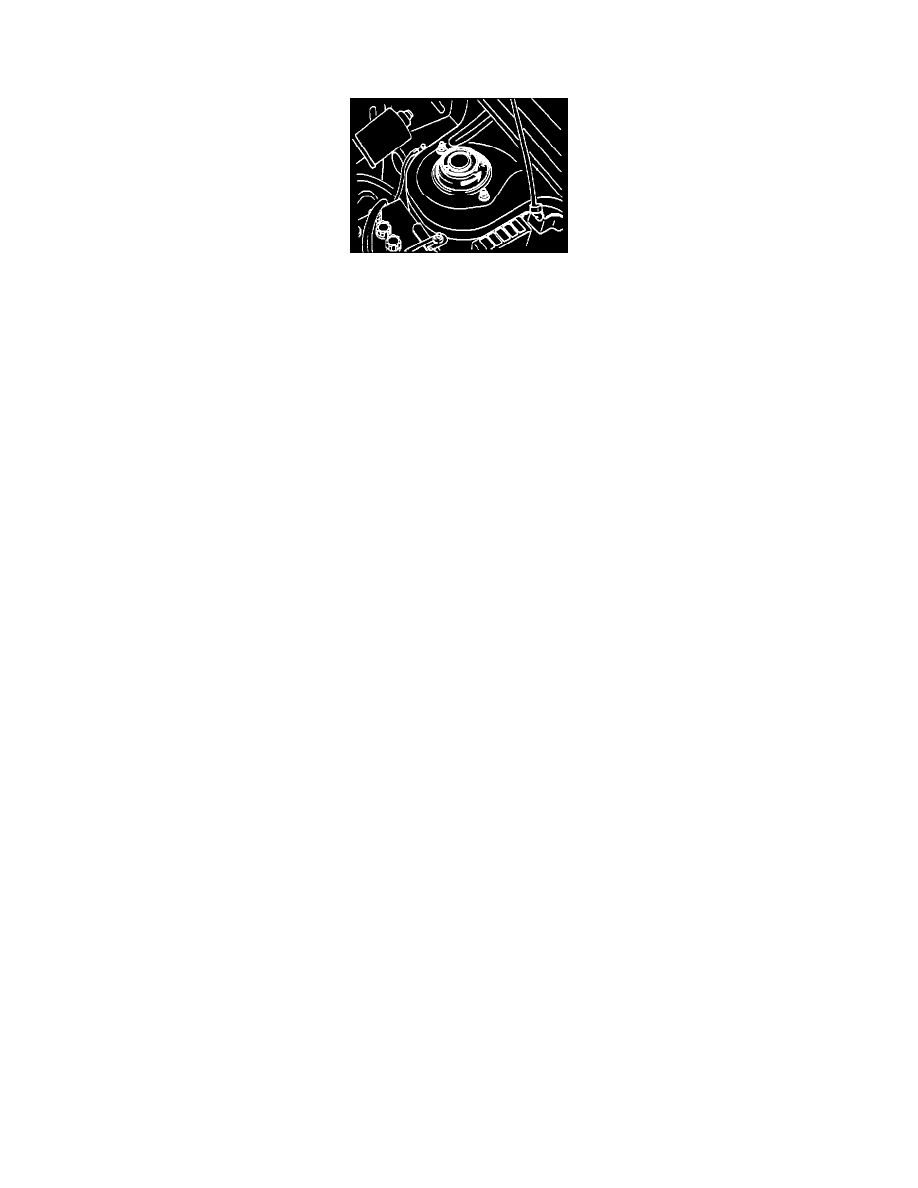

Fig. 1  Rotating Strut Bearing To Adjust Front Camber

    Camber angle can be changed by 28 minutes by the strut bearing one half turn.

1.

Raise and support vehicle by body so that front suspension is unloaded.

2.

Remove wheel and tire assembly.

3.

Remove strut to strut tower attaching nuts, then lower strut from tower.

4.

Rotate strut bearing 180 degrees, Fig. 1.

5.

Position strut to strut tower, then install attaching nuts.

6.

Install wheel and tire assembly, then recheck camber setting.
