Villager V6-181 3.0L SOHC VIN 1 EFI (1997)
7. Install the coasting clutch dish plate, coasting clutch internal spline clutch plates, coasting clutch external spline clutch plates, and coasting clutch
pressure plate in reverse order of removal.

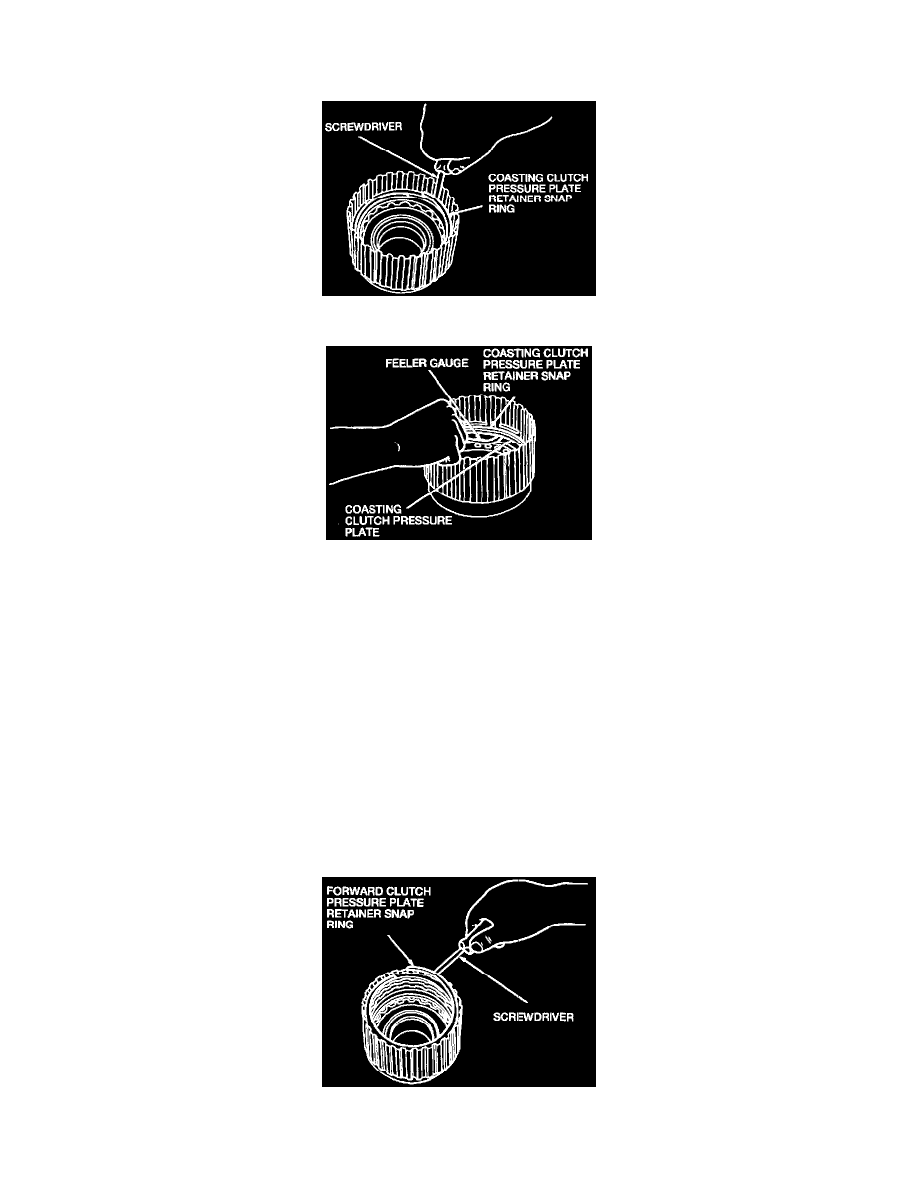

8. Use a screwdriver to install the coasting clutch pressure plate retainer snap ring.
9. Use a feeler gauge to measure the clearance between the coasting clutch pressure plate retainer snap ring and the coasting clutch pressure plate.
NOTE: the feeler gauge should be inserted between the coasting clutch pressure plate retainer snap ring and the coasting clutch pressure plate.
10. The standard clearance is 0.7-1.1 mm (0.028-0.043 inch) with a maximum of 1.7 mm (0.067 inch). If the clearance is not within the maximum
specification, select and insert the proper coasting clutch pressure plate from the Coasting Clutch Pressure Plate Specifications to obtain the
standard clearance.
Coasting Clutch Pressure Plate Specifications
Thickness and Part No.
3.0 mm (0.118 inch): F3XY-7B066-H
3.2 mm (0.126 inch): F3XY-7B066-J
3.4 mm (0.134 inch): F3XY-7B066-K
3.6 mm (0.142 inch): F3XY-7B066-L
3.8 mm (0.150 inch): F3XY-7B066-M
11. Install the forward clutch dish plate, forward clutch internal spline clutch plates, forward clutch external spline clutch plates, and forward clutch
pressure plates in reverse order of removal.
12. Use a screwdriver to install the forward clutch pressure plate retainer snap ring.
