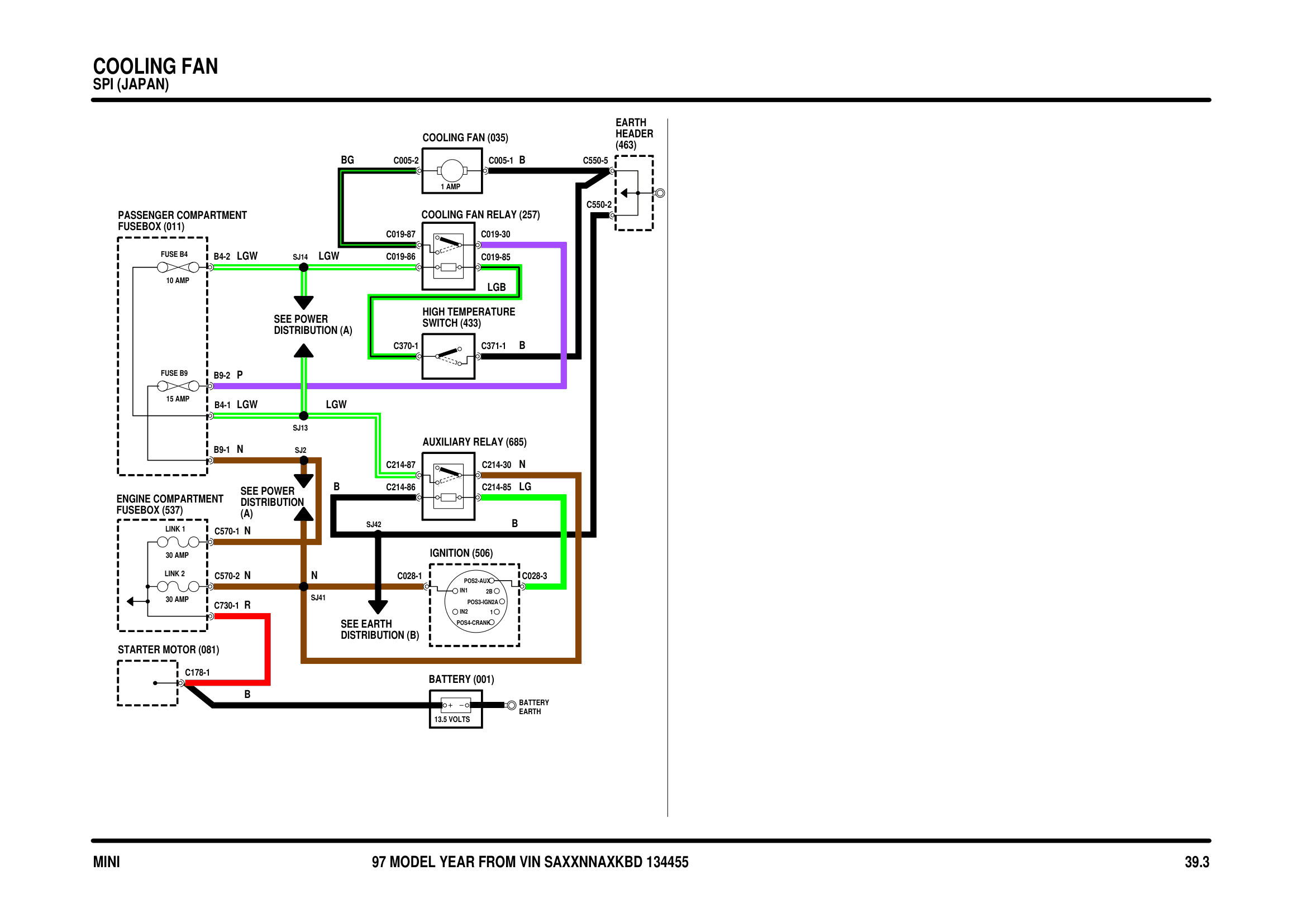

COOLING FAN
Components on this diagram
- AUXILIARY RELAY (685)
- BATTERY (001)
- COOLING FAN (035)
- COOLING FAN RELAY (257)
- ENGINE COMPARTMENT FUSEBOX (537)
- HEADER (463)
- HIGH TEMPERATURE SWITCH (433)
- IGNITION (506)
- PASSENGER COMPARTMENT FUSEBOX (011)
- STARTER MOTOR (081)
