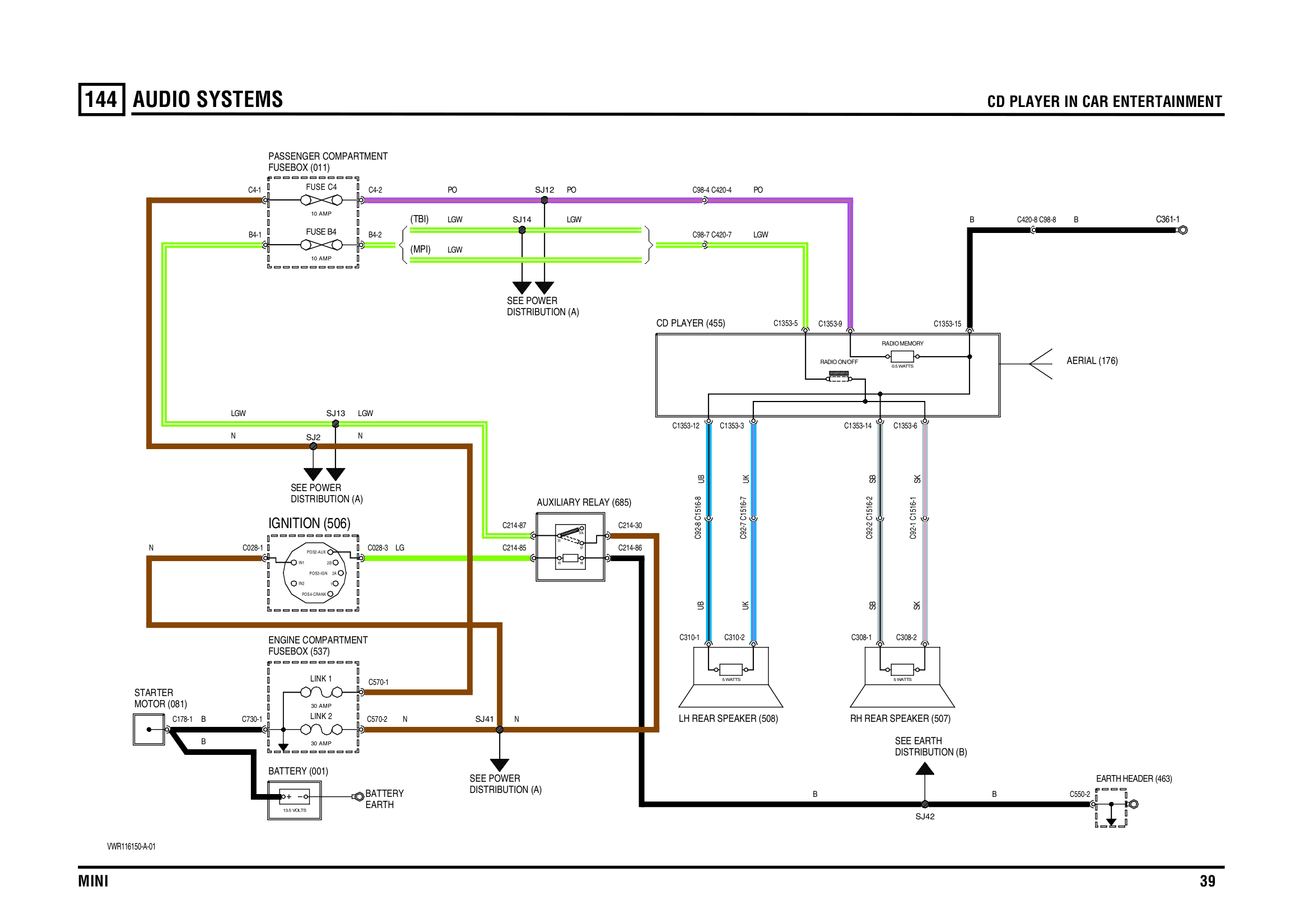

AUDIO SYSTEMS
Components on this diagram
- AERIAL (176)
- AUXILIARY RELAY (685)
- BATTERY (001)
- CD PLAYER (455)
- EARTH HEADER (463)
- ENGINE COMPARTMENT FUSEBOX (537)
- IGNITION (506)
- LH REAR SPEAKER (508)
- PASSENGER COMPARTMENT FUSEBOX (011)
- RH REAR SPEAKER (507)
- STARTER MOTOR (081)
