Body Harness to Main Harness Male
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 1997 model year
- Section
- C101 › Body Harness to Main Harness Male
ConnectorsBody Harness to Main Harness Male

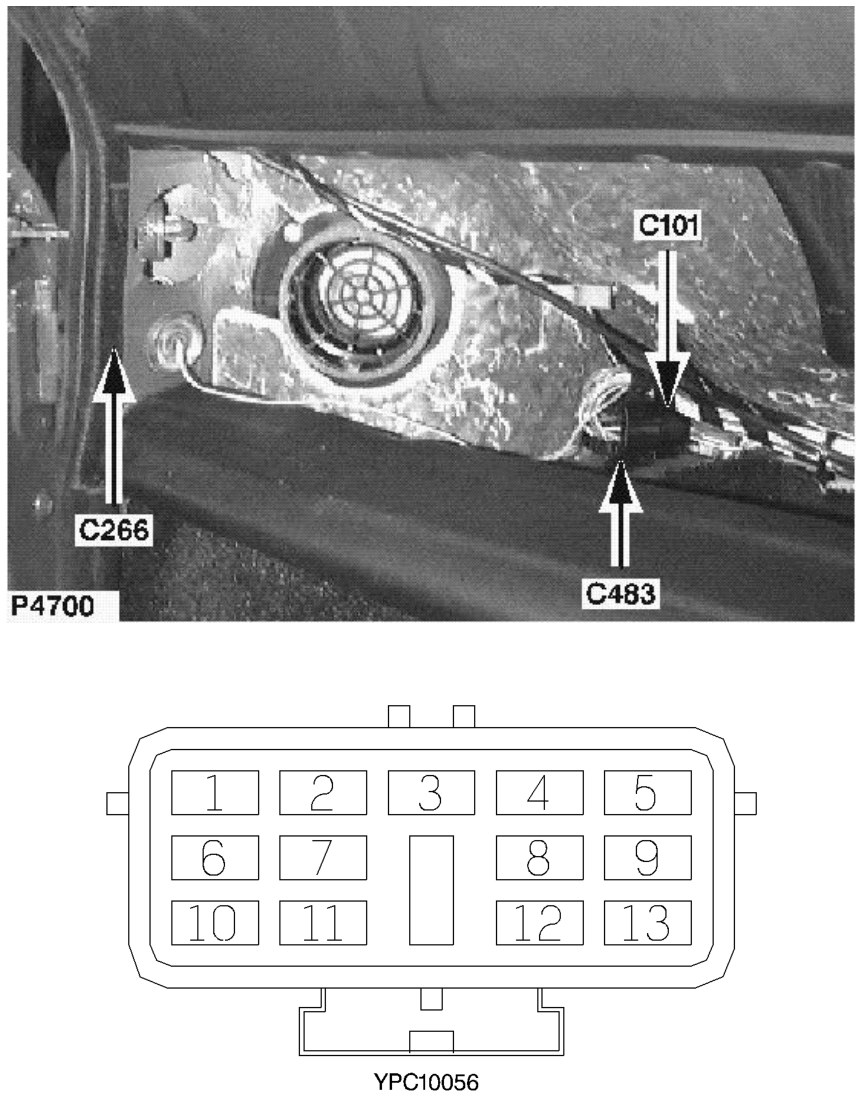

Body Harness to Main Harness Male
BLACK LH 'A' post
Carrosserie-kabelbundel naar hoofdkabelbundel Mannelijk ZWART Linker 'A' stijl
| Cav | Col | Cct | Cav | Col | Cct |
|---|---|---|---|---|---|
| 1 | GP | ALL | 7 | GB | ALL |
| 2 | UY | ALL | 9 | PK | ALL |
| 3 | GN | ALL | 10 | WP | ALL |
| 4 | GW | ALL | 11 | OR | ALL |
| 5 | GR | ALL | 12 | RW | ALL |
| 6 | RB | ALL | 13 | GY | ALL |
Mazo de cables de la carrocería al mazo de cables principal Macho NEGRO Pilar A izquierdo
