C162
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 1997 model year
- Section
- C162 › C162
ConnectorsC162

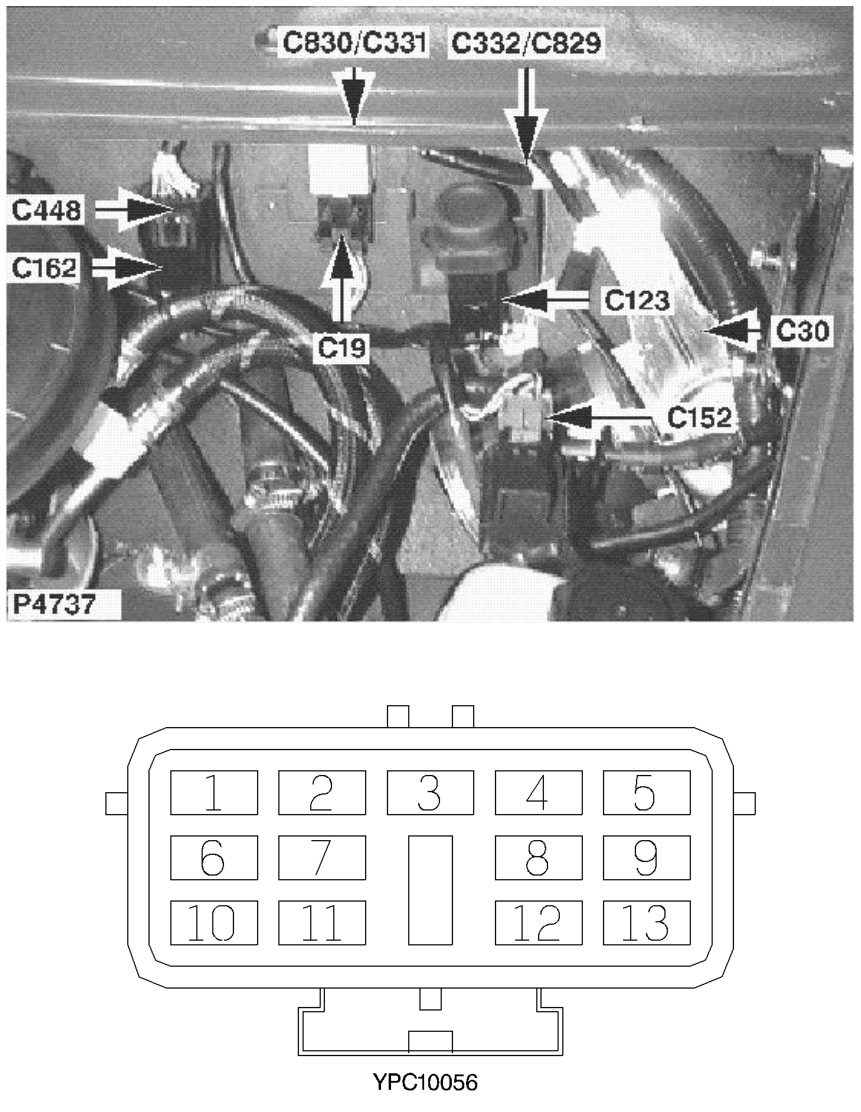

Engine Harness to Main Harness Male BLACK LH side of bulkhead
Motor-kabelbundel naar hoofdkabelbundel Mannelijk ZWART Linkerkant tussenschot
| Cav | Col | Cct | Cav | Col | Cct |
|---|---|---|---|---|---|
| 1 | W | ALL | 7 | NY | ALL |
| 2 | WK | ALL | 8 | WN | ALL |
| 3 | KG | ALL | 9 | LGB | ALL |
| 4 | NS | ALL | 10 | WR | ALL |
| 5 | WS | ALL | 11 | WY | ALL |
| 6 | WB | ALL | 12 | NU | ALL |
Mazo de cables motor al mazo de cables principal Macho NEGRO Lado izquierdo del salpicadero
