Main Harness to Airbag Harness Female
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 1997 model year
- Section
- C273 › Main Harness to Airbag Harness Female
ConnectorsMain Harness to Airbag Harness Female
Main Harness to Airbag Harness Female

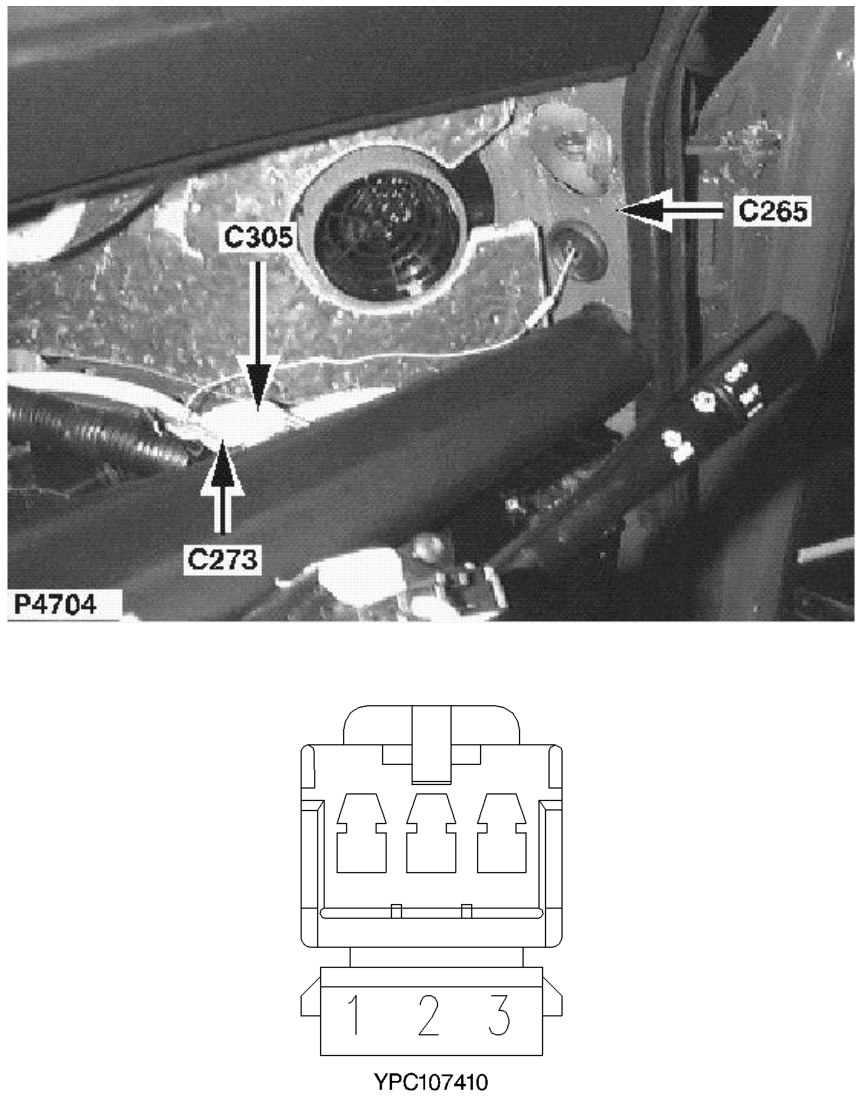

YELLOW Behind RH side of fascia
Hoofdkabelbundel naar airbag-kabelbundel Vrouwelijk GEEL Achter rechterkant dashboard
| Cav | Col | Cct |
|---|---|---|
| 1 | G | ALL |
| 2 | P | ALL |
| 3 | YK | ALL |
Mazo de cables principal al mazo de cables del airbag Hembra AMARILLO Detrás del lado derecho del tablero
