Airbag Harness to Main Harness Male
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 1997 model year
- Section
- C305 › Airbag Harness to Main Harness Male
ConnectorsAirbag Harness to Main Harness Male

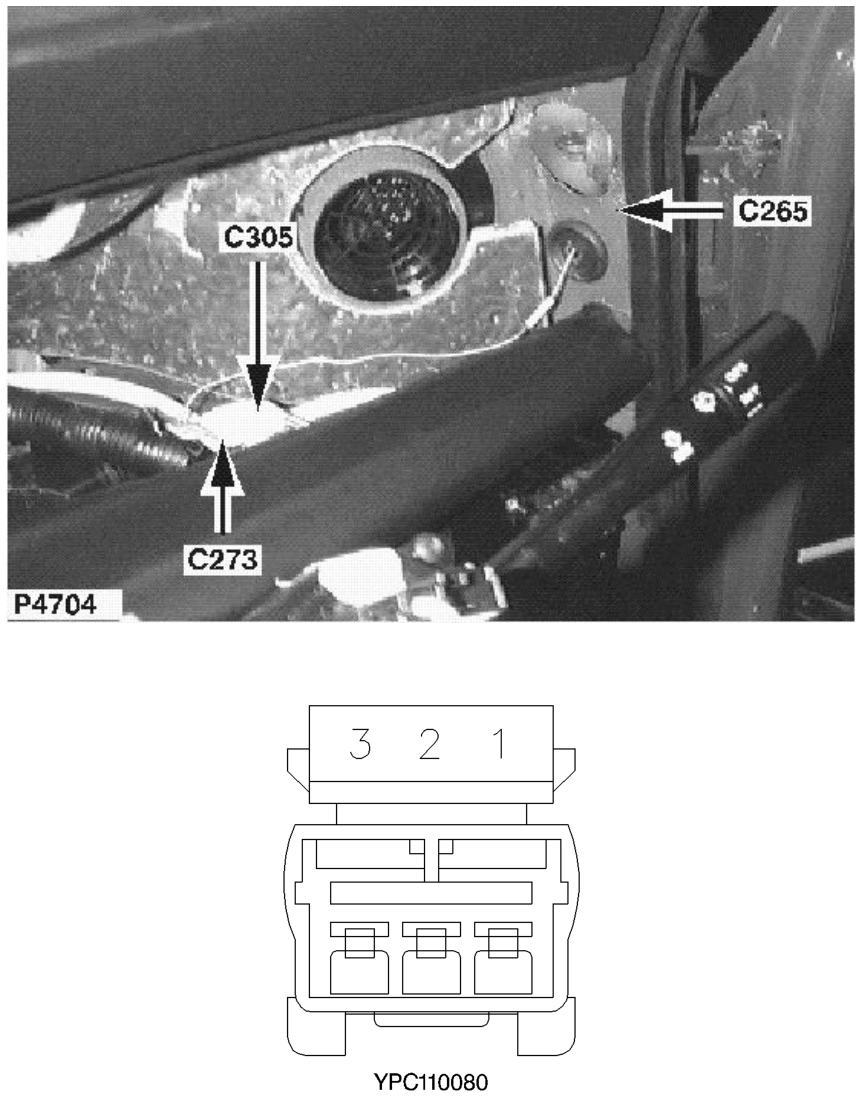

Airbag Harness to Main Harness Male
YELLOW Behind RH side of fascia
Airbag-kabelbundel naar hoofdkabelbundel Mannelijk GEEL Achter rechterkant dashboard
| Cav | Col | Cct |
|---|---|---|
| 1 | G | ALL |
| 2 | P | ALL |
| 3 | YK | ALL |
Mazo de cables del airbag al mazo de cables principal Macho AMARILLO Detrás del lado derecho del tablero
