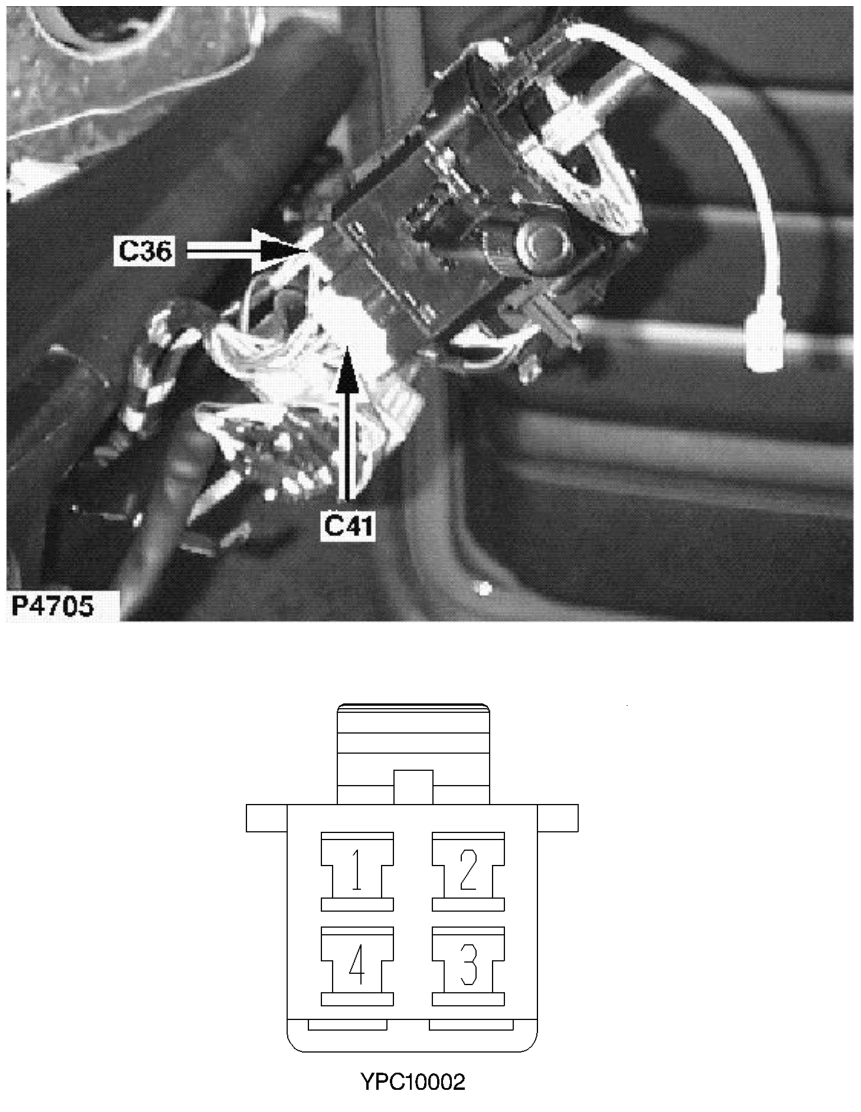

ConnectorsC36
Direction indicator switch Female NATURAL Behind steering column cowl LH side
Richtingaanwijzers - staafschakelaar Vrouwelijk NATUREL Achter stuurkolomkap - links
| Cav | Col | Cct |
|---|---|---|
| 1 | GR | ALL |
| 2 | LGN | ALL |
| 4 | GW | ALL |
Interruptor de intermitentes de dirección Hembra NATURAL Detrás del costado izquierdo de la carcasa de la columna de dirección
