Ventilator Vrouwelijk
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 1997 model year
- Section
- C56 › Ventilator Vrouwelijk

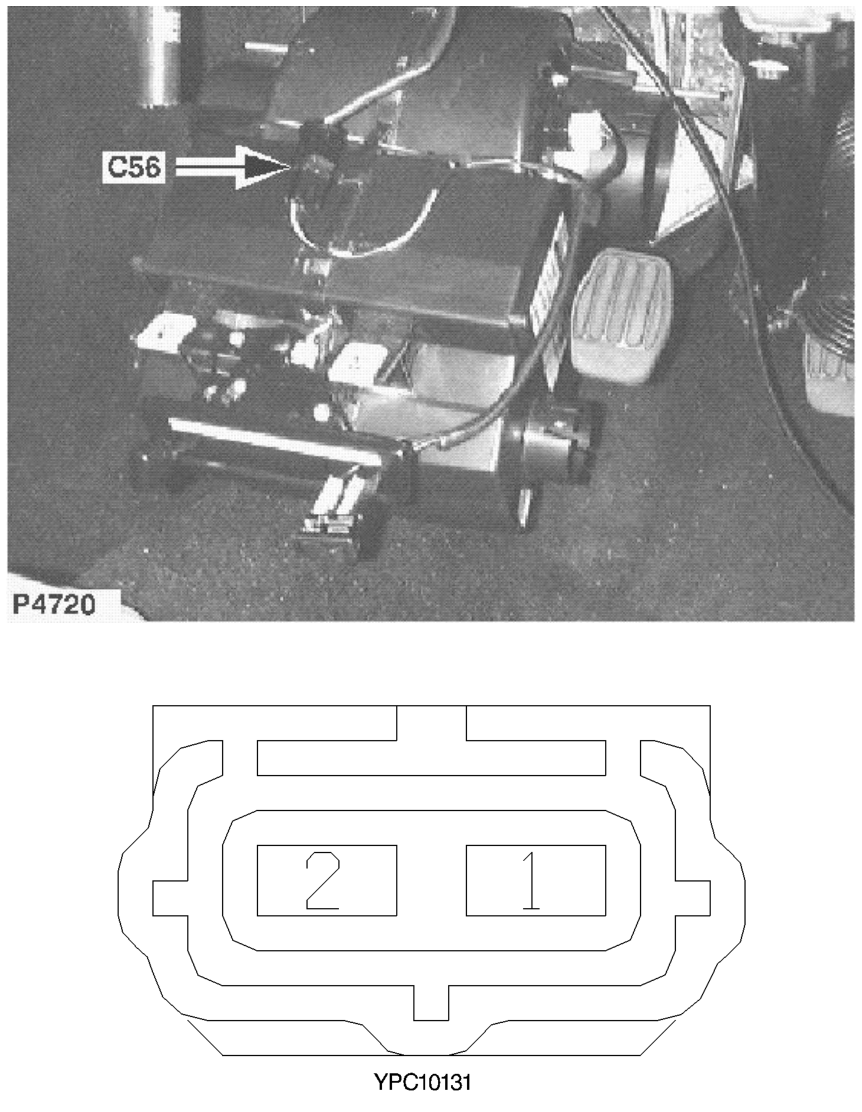

ConnectorsVentilator Vrouwelijk
Blower fan Female RED Behind centre of fascia
Ventilator Vrouwelijk
ROOD achter middelste gedeelte dashboard
| Cav | Col | Cct |
|---|---|---|
| 1 | LGO | ALL |
| 2 | B | ALL |
Ventilador de soplante Hembra ROJO detrás de la parte central del tablero
